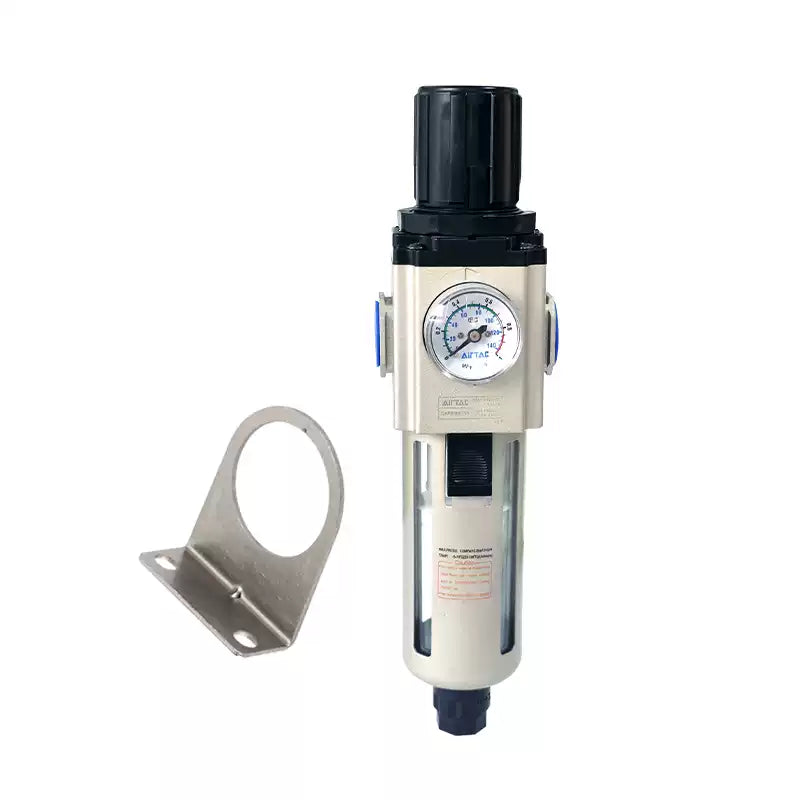

AirTAC GAFR300C10SL Air Filter Regulator

Series: GA300 series pressure regulating filter,Cup body material: metal cup,Nozzle caliber: 3/8",Drainage mode: differential pressure + manual drainage,Type: low voltage type,Bracket: attached bracket,Pressure gauge: round gauge snap type,Filtration accuracy: 40μm level,Dental type: PT tooth (MPa/psi),Reverse flow valve: without reverse flow valve,

Click to download the Airtac catalog

Product Features

1.Circular square pressure gauge which with clip and magnifier is used to save installation space.

2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3.Balanced design is adopted for the pressure adjustment mechanism.

4.Unique diversion structure spins the air flowing through to effectively separate the liquidfrom the air and reliably filter the solid grain.

5.The filtering grade includes 5 micron and 40 micron (optional).

6.Two drain types are available: semi-auto drain and automatic drain.

7.Three material of bowl are available: PC Nylon and metal,The bracket can be selected for installation.

The Airtac GAFR200-600 air prep series is a functional replacement for the SMC AW20-40 series.
