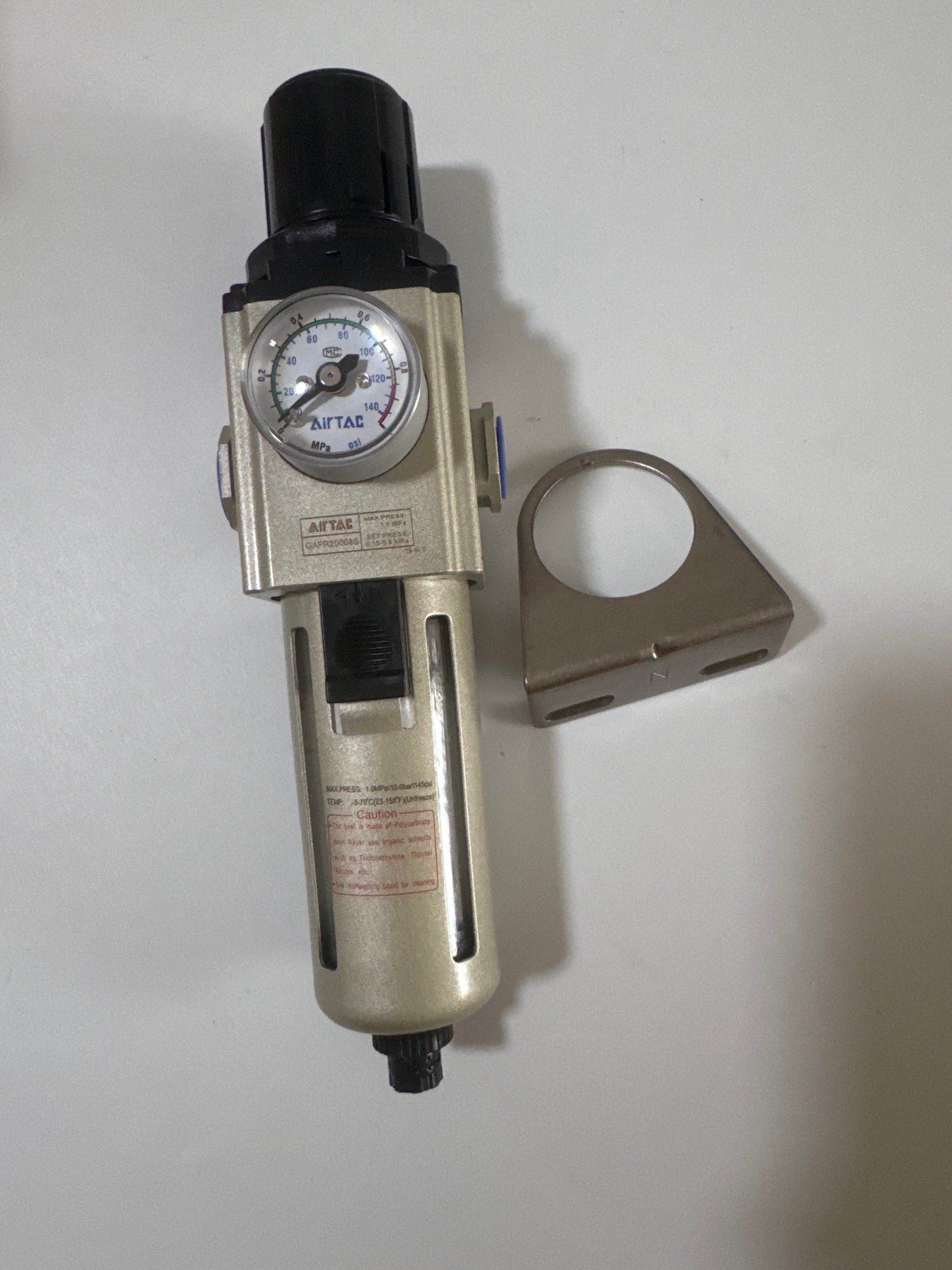

AirTAC GAFR20008S Air Filter Regulator
AirTAC GAFR20008S Air Filter Regulator
Couldn't load pickup availability
The AirTAC GAFR20008S is a air filter regulator with PT 1/4 connections. It combines a 40 µm filter element with a regulator in one body. This order code specifies a differential-pressure and manual drain.
Product Features
- A balanced regulator mechanism controls downstream pressure and reduces setting drift.
- Press the adjustment knob down to lock the pressure setting after adjustment.
- The inlet guide produces a swirl to separate condensate, and the filter element captures solid particles.
- The bowl collects separated condensate. Use the drain and leave enough clearance to service the element.
Technical Specifications
| Order code | GAFR20008S |
|---|---|
| Body series | GAFR200 |
| Air ports | PT 1/4 |
| Working medium | Compressed air |
| Proof pressure | 1.5 MPa |
| Maximum inlet pressure | 1.0 MPa |
| Outlet pressure adjustment | 0.15–0.9 MPa |
| Regulator version | Standard |
| Ambient temperature | −5 to 70 °C, non-freezing |
| Pressure gauge | Snap-in round gauge (MPa / psi) |
| Mounting bracket | Included |
| Reverse-flow valve | Not included |
| Filter element | 40 µm |
| Condensate drain | Differential-pressure and manual drain |
| Bowl material | Polycarbonate |
| Condensate bowl capacity | 25 mL |
Before You Order
Follow the flow direction shown on the body and in the catalog. Check the outline drawing for fitting clearance, access to the controls and space for service.
Match the exact PT 1/4 connection to your existing fittings. For a replacement, compare the mounting pattern and relevant options before ordering.
Check the drain type, filter rating and bowl material for your installation. Leave clearance below the bowl and verify the required outlet setting against the adjustment range.
