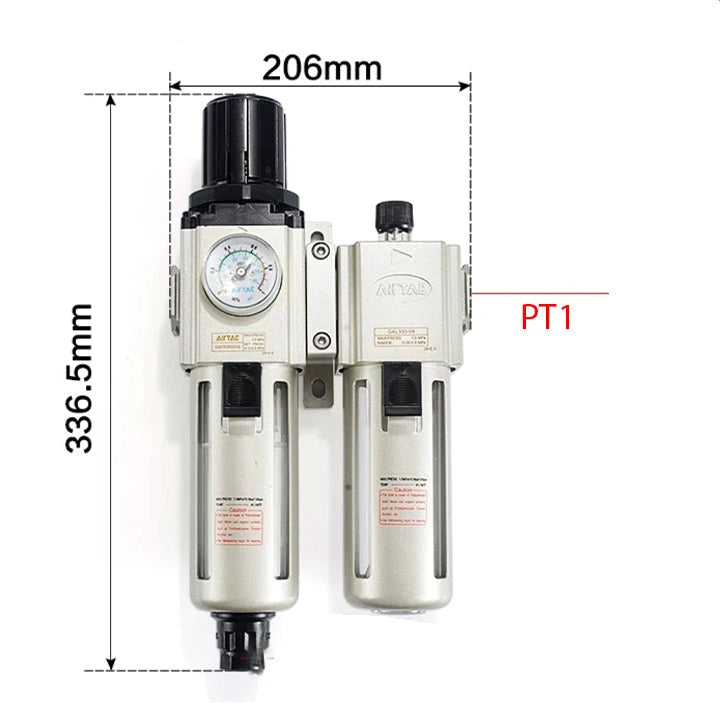

Airtac GAFC600: Filter Regulator Lubricator - GAFC600C25AS

Series: GA600 series conditioning combination Cup body material: metal cup Nozzle caliber: 1" Drainage mode: automatic drainage type Type: Standard Pressure gauge: round gauge snap type Filtration accuracy: 40μm level Dental type: PT tooth (MPa/psi) Reverse flow valve: without reverse flow valve

Specifications

1. Model: GAFC600C25AS

2. Working medium: air, nozzle diameter: PT1, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Water filter cup capacity: 205CC, oil supply cup capacity: 410CC, recommended lubricating oil: ISO VG32 or equivalent oil, weight: 3430g

5. Pressure regulating filter components: GAFR600-25 and oil feeder components: GAL600-25. The nozzle type is optional with G teeth and NPT teeth.

Internal structure: 1.GA series pressure regulating filter/2. Connecting bracket/3.GA series oil feeder

Filter cartridge :GAFC600-40 With white 40μm filter element GAFC600-5 With blue 5μm filter element ， Filter water cup oil cup :GAFC600 Water Cup Metal Cup GAFC600 Oil cup

Click to download Airtac product catalog

Product Features

1. Fast and reliable installation fixture, easy to install and use.

2. Reliable pressure regulation performance and high precision.

3. High efficiency of removing moisture and solid particles.

4. There are two types of drainage: semi-automatic drainage and automatic drainage.

5. The bowl body has three materials to choose from: PC nylon and metal.

The Airtac GAFC200-600 air preparation series is a functional alternative to the SMC AC20A-40A series.
