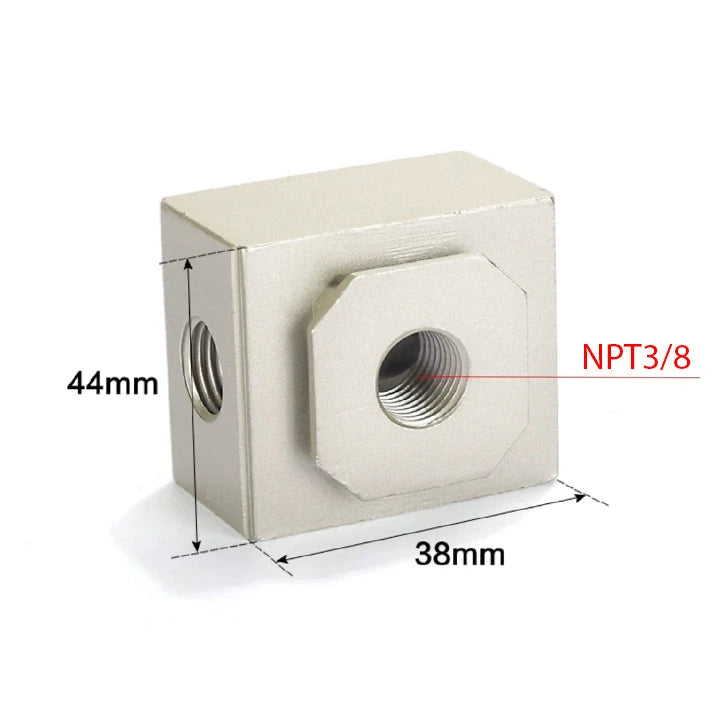

Airtac GA series of gas-distribution block - GA30010T

Series: 300 series gas distribution block Nozzle caliber: 3/8" Tooth type: NPT tooth

Specifications

1. Model: GA30010T

2. Working medium: air, nozzle diameter: PT3/8, number of ports: four-way, operating pressure range: 0~1.0MPa(0 ~ 145psi)

3. Maximum pressure resistance: 1.5MPa(215psi), operating temperature range:-20~70 ℃, connecting tooth type has G tooth and NPT tooth to choose from

Internal structure: on. To branch joint/lower. To branch fitting/left. To outlet of pressure regulating valve/right. To oil feeder inlet

Connecting bracket :GA300L-P1 L-type connecting bracket GA300T-P1 T-connection bracket GA300U-P1 U-shaped connecting bracket

Click to download Airtac product catalog

Product Features

1. It is installed between GA series pressure regulator (or filter pressure regulator) and G series oil mist device. Through the device, one air flow enters the oil mist device for lubrication, and the other (second) air flow directly enters the inside of the equipment.

2. There are many kinds of brackets for connecting the regulator and the oil mist device. The optional brackets are T-type, L-type and U-type.
