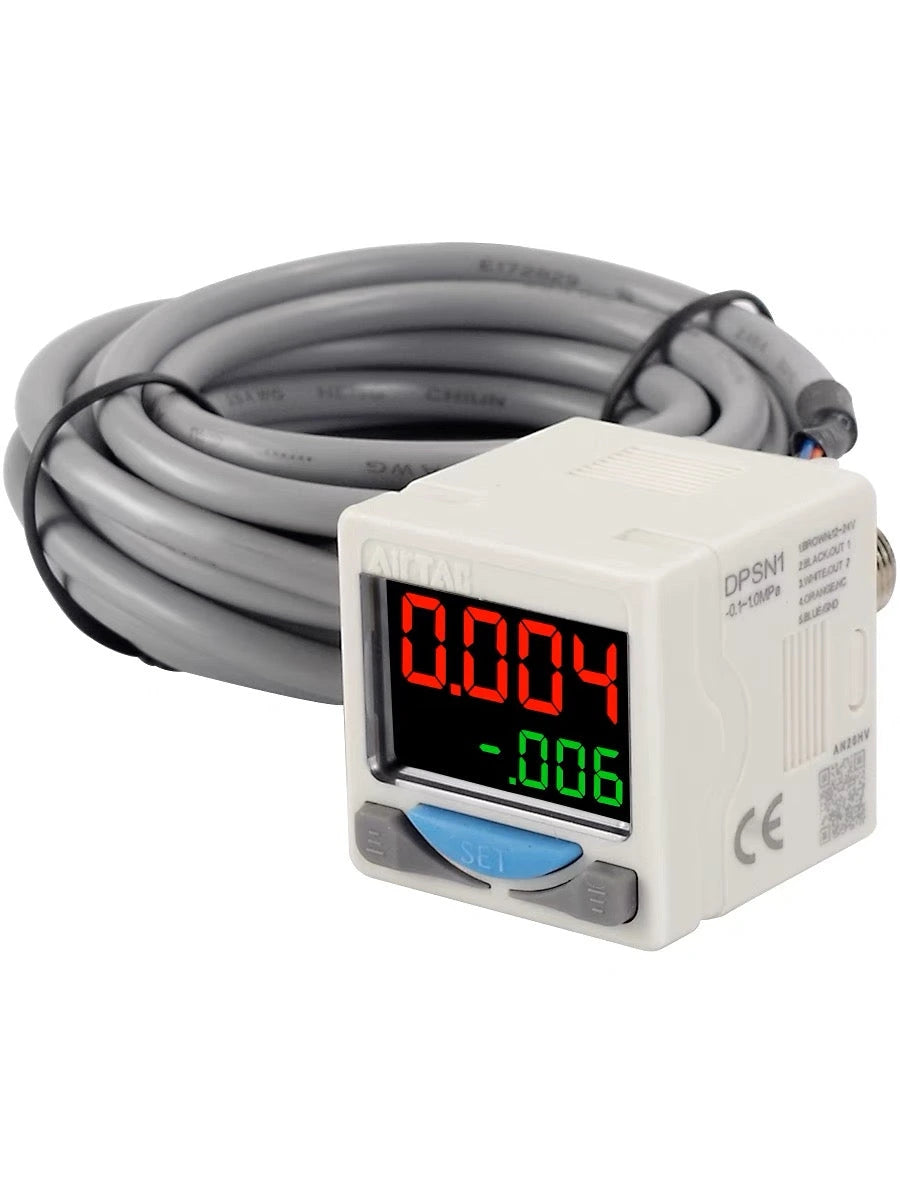

The AirTAC DPSN1-10020T is a digital pressure sensor for non-corrosive gas, with a −100 to 1,000 kPa measurement range and two npn outputs. The two LCD rows show the measured pressure and set value.
Product Features
- The dual LCD displays current pressure and the set point at the same time.
- Two switch outputs allow separate pressure set points. The catalog describes hysteresis and window modes.
- The pressure connection includes a male outer thread and a female inner thread for the selected configuration.
Technical Specifications
| Order code | DPSN1-10020T |
|---|---|
| Measurement range | −100 to 1,000 kPa |
| Maximum withstand pressure | 1,500 kPa |
| Medium | Non-corrosive gas |
| Pressure port | NPT 1/8 male / 10-32 UNF female |
| Wiring style | Terminal connection |
| Cable | 2 m |
| Supply voltage | 12–24 V DC ±10%, ripple <10% |
| Switch outputs | Two NPN outputs |
| Output rating | 30 V / 100 mA, residual voltage <1.5 V |
| Accuracy | ±2% full scale ±1 digit at 25 ±3 °C |
| Repeatability | ±0.2% full scale |
| Ambient temperature | 0–50 °C |
| Operating humidity | 35–80% RH, non-condensing |
Before You Order
Match pressure range, pressure port and output type to the machine input. Check supply and signal wiring against the diagram before powering the sensor.
Use the outline drawing for panel and bracket clearances. Confirm that the measured gas falls within the stated medium and pressure limits.
