AirTAC DMSG-M08020 Solid-State Cylinder Position Sensor, Two-Wire Output
AirTAC DMSG-M08020 Solid-State Cylinder Position Sensor, Two-Wire Output
Couldn't load pickup availability

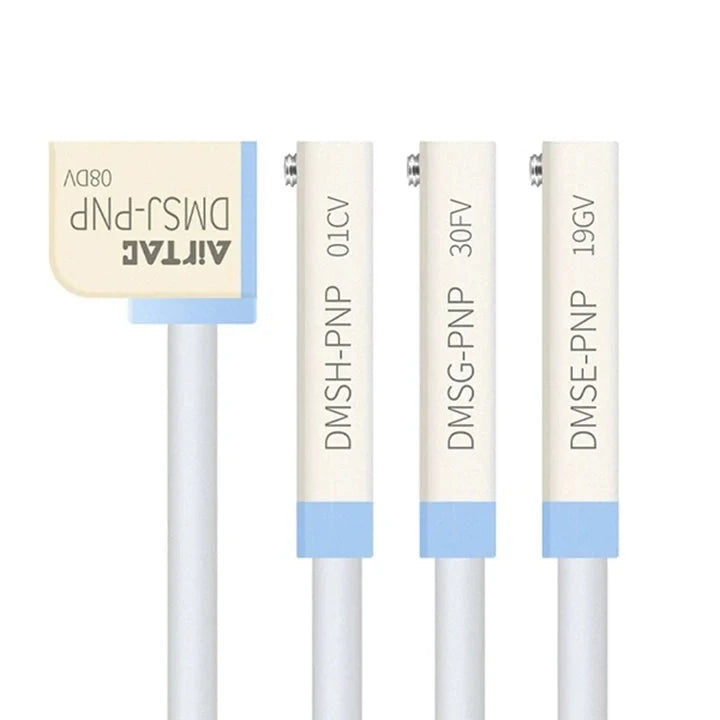

The AirTAC DMSG-M08020 is a solid-state electronic cylinder position sensor with the G-profile body and a 2 m lead. It detects a magnetic piston in a compatible pneumatic cylinder.
Product Features
- The sensor responds to the magnetic piston without a mechanical contact between the piston and sensor.
- The mounting profile identifies the slot or optional bracket needed for installation.
- The lead has strain relief near the sensor body. Follow the cable-routing drawings to protect it from repeated bending and tension.
- Built-in circuitry provides reverse-polarity and surge protection.
Technical Specifications
| Order code | DMSG-M08020 |
|---|---|
| Technology | Solid-state electronic |
| Mounting profile | G |
| Connection | M8 male quick connector |
| Cable length | 2 m |
| Output | Two-wire DC |
| Supply voltage | 10–28 V DC |
| Max. output rating | 2.5–100 mA switching range |
| Max. output power | 2.8 W |
| Max. residual voltage | 3.5 V |
| Max. switching frequency | 1,000 Hz |
| Ambient temperature | −10 to 70 °C |
| Protection | IP64 |
Before You Order
Use the manufacturer’s cylinder-to-sensor table for the exact cylinder series, bore and mounting location. Match the groove profile before ordering.
Check the supply voltage and load against the sensor’s wiring diagram. Route the cable away from high-voltage and motor wiring.
Select the matching female connector cable by connector size and wire count. AirTAC lists it as a separate accessory.
