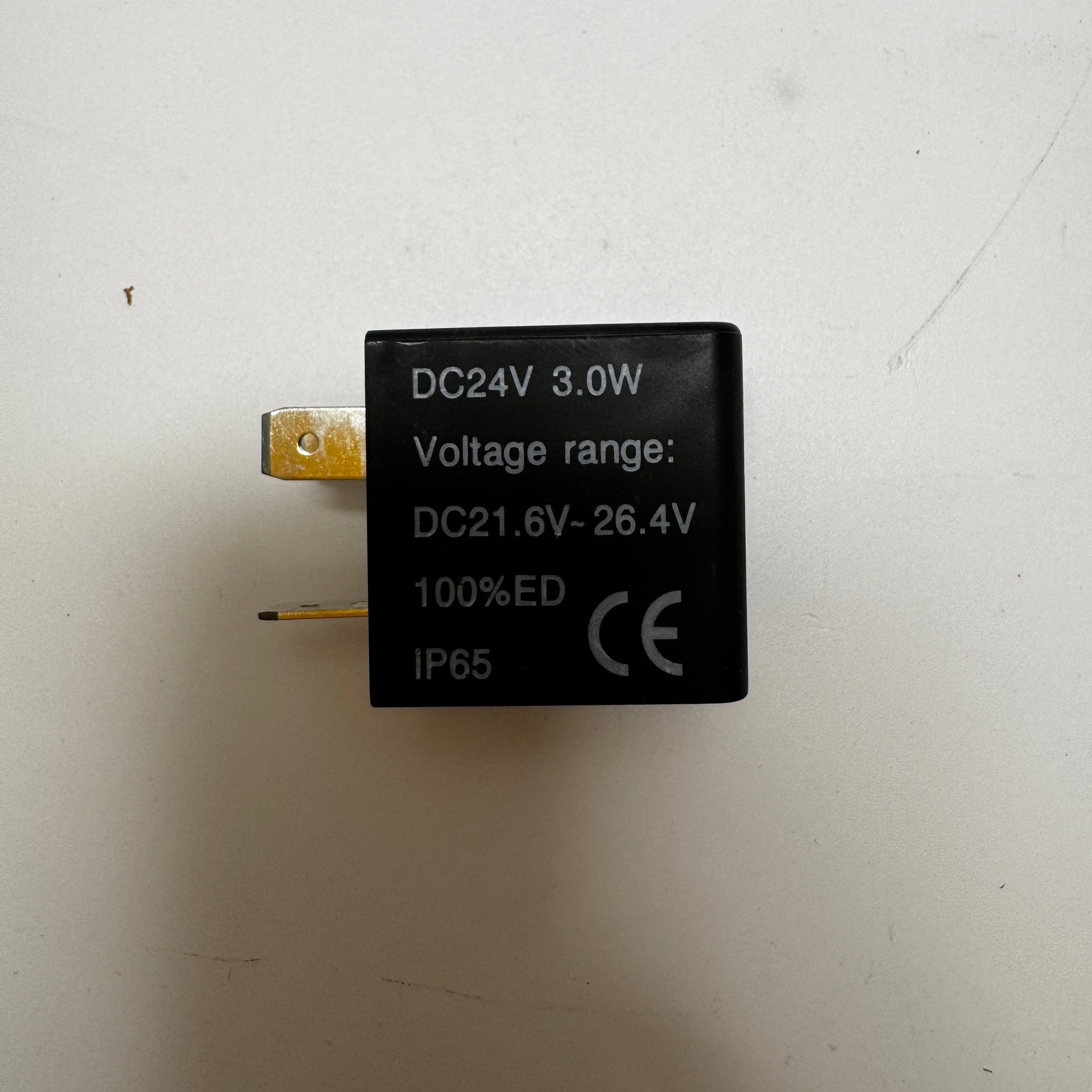

AirTAC CDA092B Solenoid Valve Coil, 24 V DC
AirTAC CDA092B Solenoid Valve Coil, 24 V DC
Couldn't load pickup availability
The AirTAC CDA092B is a 24 V DC replacement solenoid coil from the 092 coil family with a 9.0 mm catalog bore. The listed electrical entry lets you match the original coil connection.
Product Features
- The replacement coil fits the matching armature size on the listed valve families.
- The terminal layout supports the plug options listed for this power type.
- The factory ordering table identifies the coil bore, terminal style and voltage in the order code.
Technical Specifications
| Order code | CDA092B |
|---|---|
| Component | Replacement solenoid coil |
| Coil family | 092 |
| Catalog bore | 9.0 mm |
| Coil voltage | 24 V DC |
| Power type | DC |
| Electrical entry | Terminal (CD) |
| Compatible valve families, catalog | 3V1, 3V200/300, 4V200/300/400, 4M200/300, ESV200/300/400/600 |
| Matching connector options | 4V210-005-P1 or 4V210-005-P3 |
Before You Order
Match the original coil marking, bore, voltage and power type before ordering. Check the valve version and connector in the AirTAC compatibility table.
For a DC terminal connector with an indicator, use the AirTAC pin diagram to match polarity. Check for clearance around the plug and cable.
