AirTAC BF3000 Compressed Air Filter
AirTAC BF3000 Compressed Air Filter
Couldn't load pickup availability

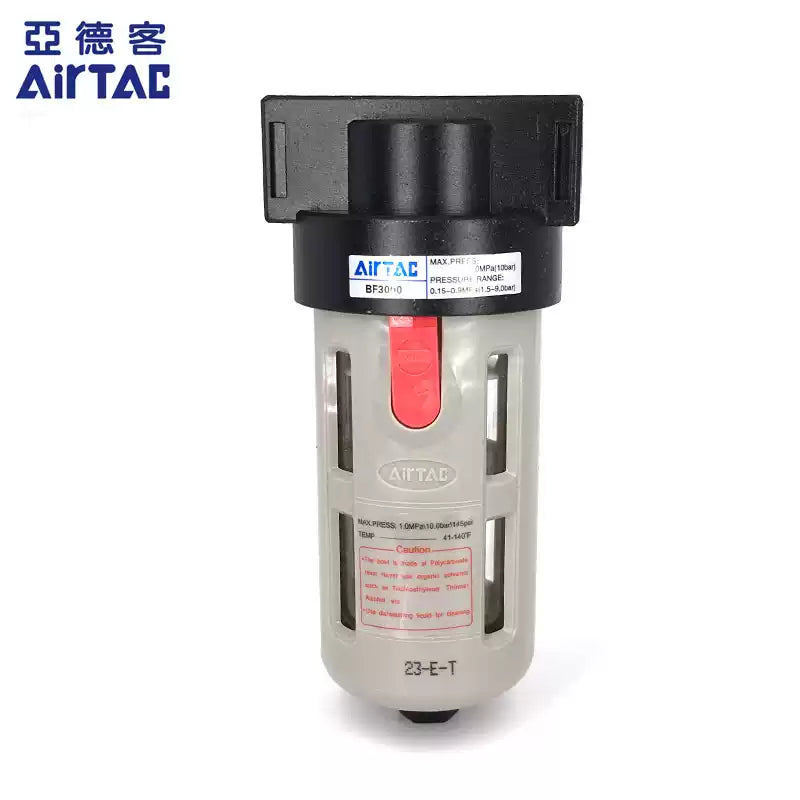

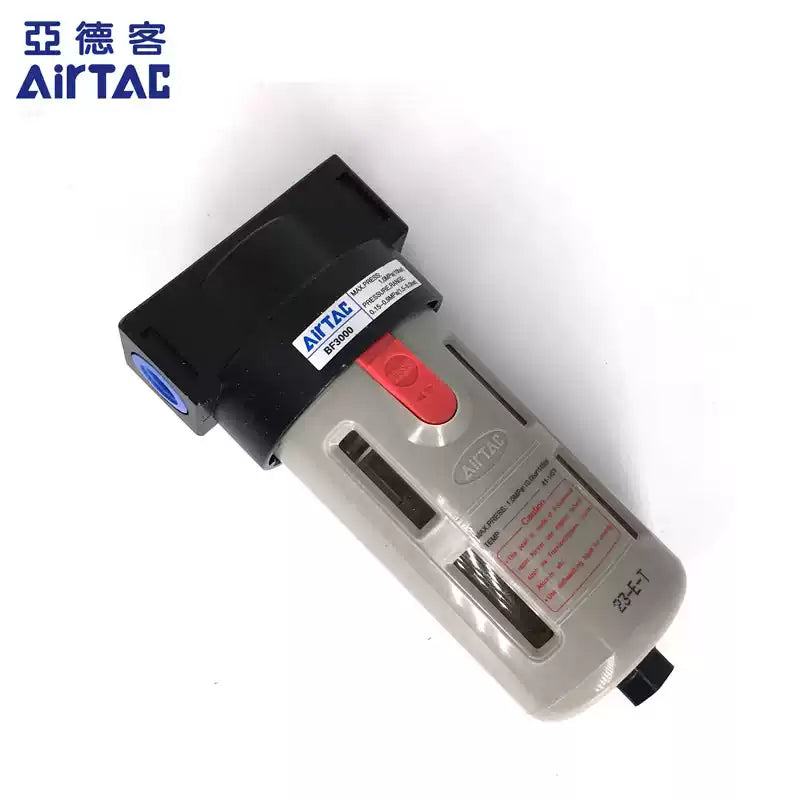

The AirTAC BF3000 is a compressed-air filter for a compressed-air line with PT 3/8 connections. Check the listed configuration and the catalog dimensions when selecting a replacement.
Product Features
- The filter stage separates condensate and captures particles before the air continues downstream.
- The drain removes collected condensate. Leave service clearance below the bowl.
- Use the catalog flow curve for the selected body and port.
Technical Specifications
| Order code | BF3000 |
|---|---|
| Working medium | Compressed air |
| Air ports | PT 3/8 |
| Proof pressure | 1.5 MPa |
| Filter element | 40 µm |
| Condensate drain | Semi-automatic drain |
| Condensate bowl capacity | 60 mL |
| Operating pressure | 0.15–1.0 MPa |
| Bowl material | Polycarbonate |
| Ambient temperature | −5 to 70 °C, non-freezing |
Before You Order
Use the inlet and outlet markings to orient the unit. Check the drawing for the mounting pattern and leave access for adjustment or service.
Match the port thread to your existing fittings and confirm the operating range against your air supply and downstream requirements.
Confirm the filtration grade and drain type. Leave space below the bowl for draining and element service.
