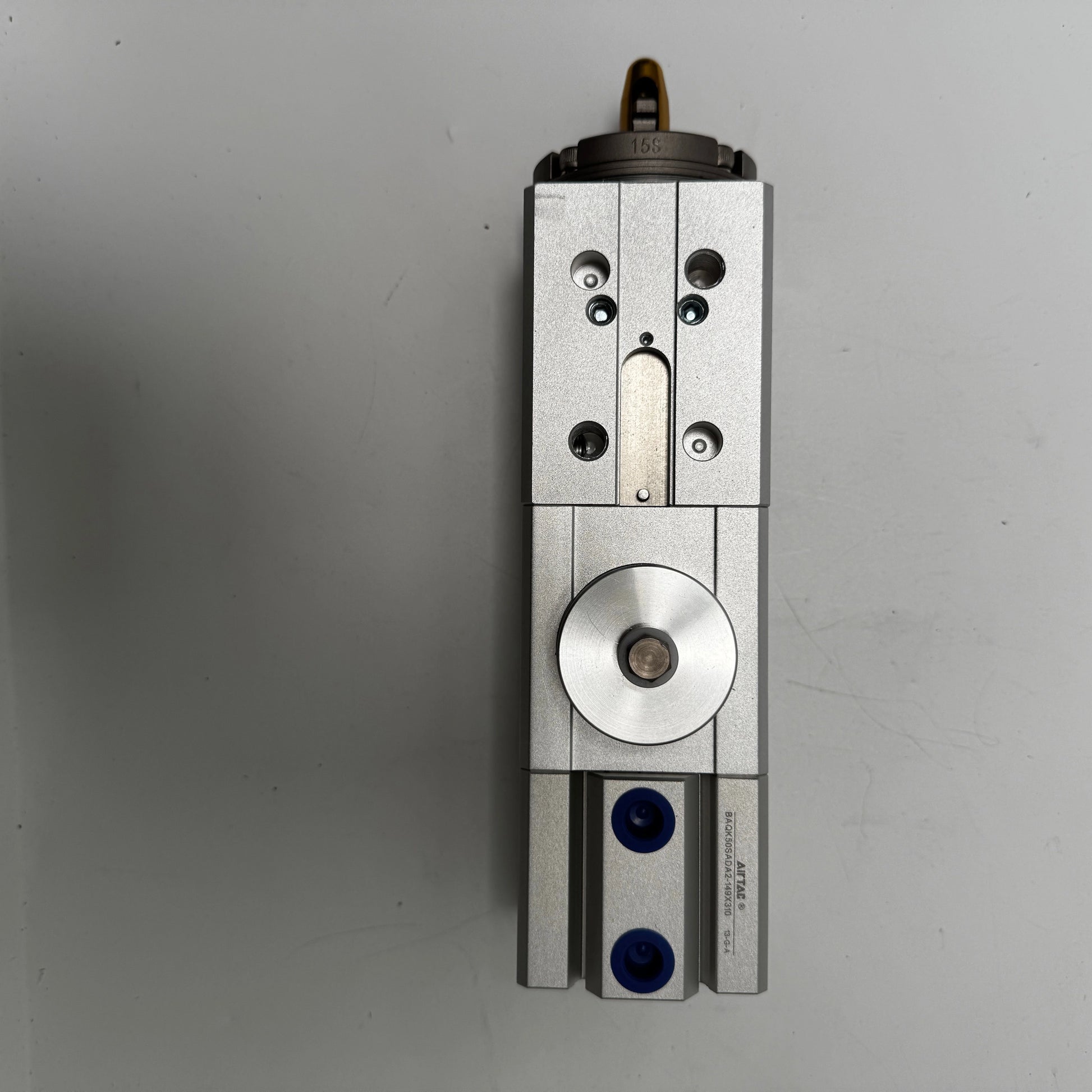

Airtac BAQK Series: Holding Pin Cylinder - BAQK50SADA2-149X310

Specifications: Holding type pin cylinder Cylinder diameter: 50mm Magnet: with magnet Body installation size: installation screw hole M10X1.5/pin hole diameter ø10 Mounting surface screw hole and pin hole position relationship: D-type configuration relationship Clamping arm position: Clamping arm is on the same side as the air inlet Adjusting gasket: 2mm with adjusting gasket (2 0.5mm +1 1mm) Tooth type: PT1/4 Diameter of guide pin: 14.9mm, height of guide pin: 31mm

Click to download Airtac product catalog

Product Features

1. Implement JIS standard.

2. The surface of the pin is coated with titanium alloy, which greatly improves the wear resistance.

3. The front cover of the cylinder has a metal scraping sleeve, which can effectively remove slag, chips, etc.

4. Multi-directional installation, the body of the mechanism part provides four-sided installation.

5. The cylinder body has a sensor groove around it, which is easy to install.
