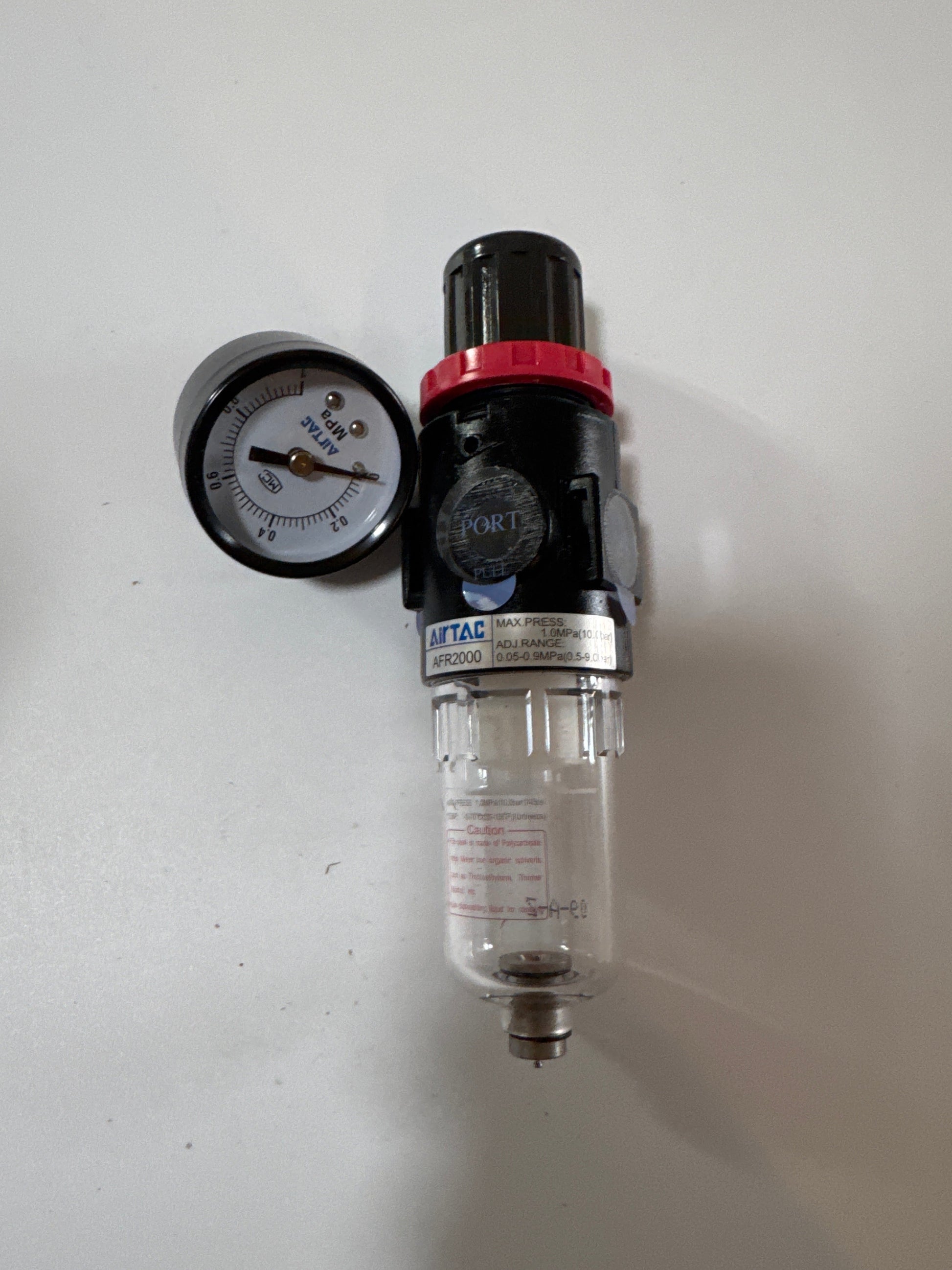

AirTAC AFR2000MJ1 Air Filter Regulator
AirTAC AFR2000MJ1 Air Filter Regulator
Couldn't load pickup availability
The AirTAC AFR2000MJ1 is an air filter regulator for a compressed-air line with PT 1/4 connections. Check the listed configuration and the catalog dimensions when selecting a replacement.
Product Features
- Push the adjustment knob in to lock the selected outlet pressure.
- The compact regulator body mounts in a pneumatic supply line. The catalog provides pressure and flow curves.
- The filter stage separates condensate and captures particles before the air continues downstream.
Technical Specifications
| Order code | AFR2000MJ1 |
|---|---|
| Working medium | Compressed air |
| Air ports | PT 1/4 |
| Proof pressure | 1.5 MPa |
| Maximum inlet pressure | 1.0 MPa |
| Outlet adjustment | 0.05–0.9 MPa |
| Regulator type | Standard |
| Pressure gauge | Included (MPa) |
| Mounting bracket | Not included |
| Filter element | 40 µm |
| Condensate drain | Manual drain |
| Condensate bowl capacity | 15 mL |
| Ambient temperature | −5 to 70 °C, non-freezing |
Before You Order
Use the inlet and outlet markings to orient the unit. Check the drawing for the mounting pattern and leave access for adjustment or service.
Match the port thread to your existing fittings and confirm the operating range against your air supply and downstream requirements.
Confirm the filtration grade and drain type. Leave space below the bowl for draining and element service.
Set the outlet pressure with the downstream equipment connected under its normal operating conditions. Check the gauge range and compare the catalog flow curve with the expected demand.
