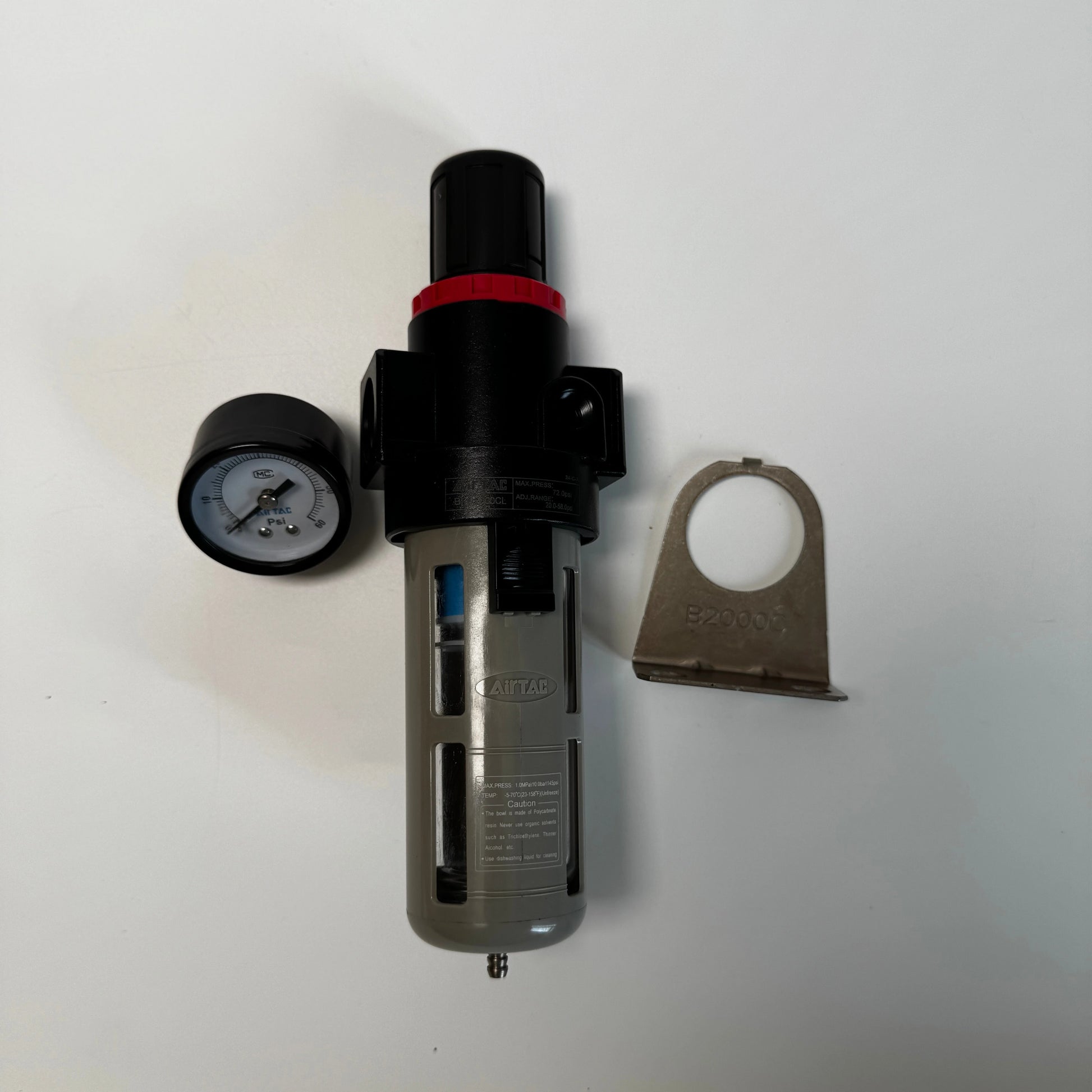

Airtac AFR,BFR Series: Pressure regulating filter - BFR2000CL2WT

Series: B series pressure regulating filter Nozzle caliber: 1/4" Pressure gauge mounting thread: one side Drainage mode: differential pressure + manual drainage Type: low pressure type (0.4MPa) Bracket: attached bracket Pressure gauge: schedule Scale unit: psi Filtration accuracy: 5μm level Tooth type: NPT tooth

Specifications

1. Model: BFR2000CL2WT

2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Water filter cup capacity: 40CC, with PT teeth, G teeth and NPT teeth available for nozzle type

Internal structure: 1. Main pressure regulator: POM/2. Main pressure regulating nut: carbon steel/3. Main pressure regulator seat: POM/4. Pressure regulating spring: SWC/5. Retaining ring cap: POM/6. Body: aluminum alloy/7. Main pressure diaphragm: SPCC + PA66 + TPU + NBR/8. Pressure regulating column: aluminum alloy encapsulation (A series),POM(B series)/9. Pressure regulating plug head: aluminum alloy coated/10. Diverter: POM/11. Umbrella type fixing seat: POM/12. Water cup: PC/13. Differential pressure drain column: fast cutting steel/14. Differential pressure drain column spring: stainless steel/15. Differential pressure drain column Oorder: NBR/16. Oorder: NBR/17. Filter element: HDPE/18. Return spring: stainless steel/19. Water cup o order: NBR/20. Pressure regulating column O order: NBR/21. Button: POM/22. Button spring: Stainless steel/23. Protective cover: PA6 + glass fiber/24. Buckle: Spring steel/25. Feedback catheter: POM

Drainer :AD300B06 Automatic drainer BFR Differential pressure drain ， Filter water cup oil cup :BFR2000 Water cup with differential pressure drain BFR2000 Water cup without drain BFR Plastic protective cover

Click to download Airtac product catalog

Product Features

1. Lightweight and compact structure, easy to install and use.

2. Press-in self-locking mechanism, which can prevent the setting pressure from being disturbed by the outside world;

3. Small pressure loss, high water efficiency.

4. In addition to the standard form, there are low pressure type to choose from (the highest adjustable pressure 0.4MPa).
