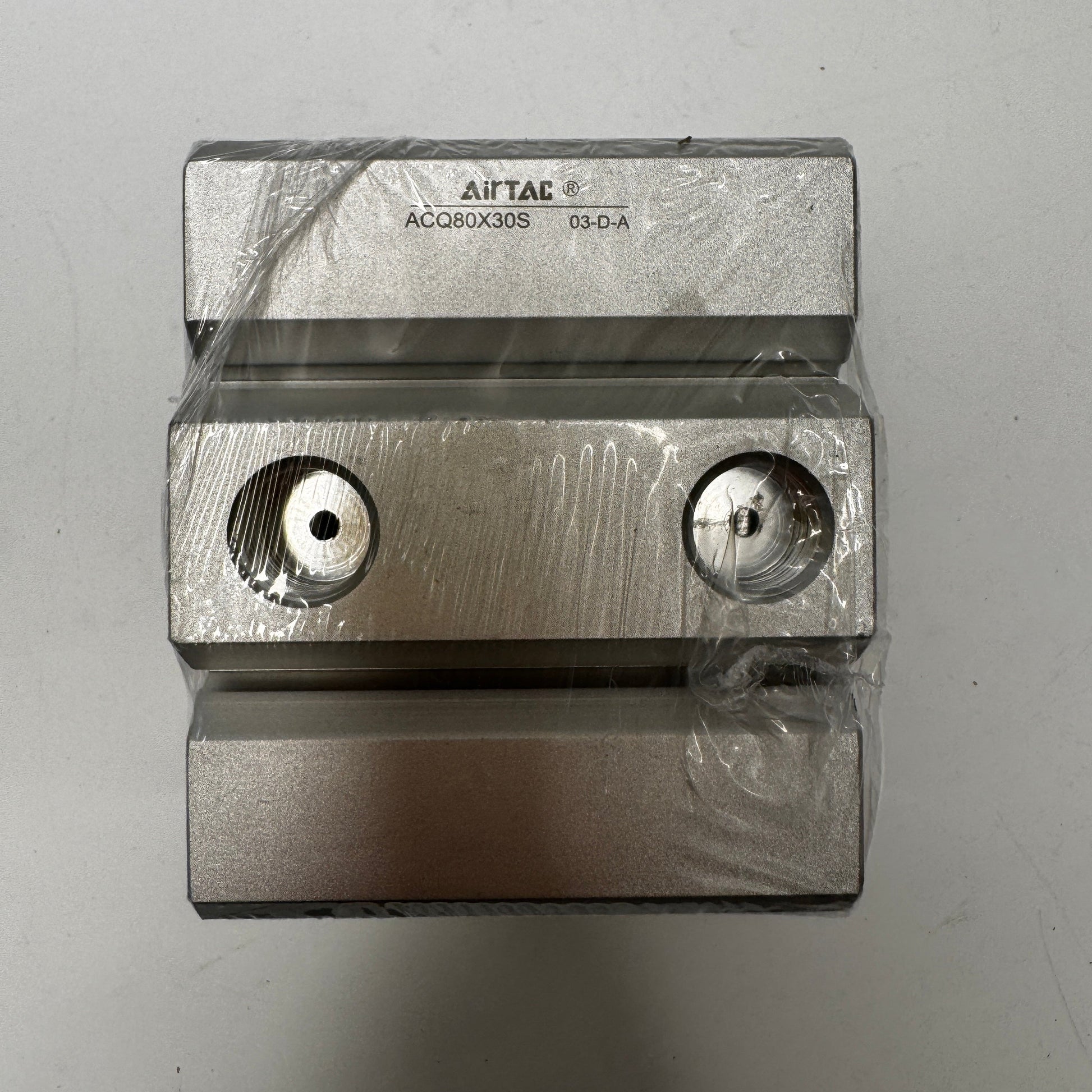

Airtac ACQ series: double acting cylinder - ACQ80X30S

Specifications: ultra-thin cylinder (double action type) Bore: 80mm Travel: 30mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: no installation accessories Tooth type: PT tooth

Specifications

1. Model: ACQ80X30S

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range mm: Travel ≤100+0/1.0, Travel ＞100+0/1.5

5. Buffer type: anti-collision pad, nozzle caliber: PT3/8

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG,EMSG,DMSJ,CMSJ

Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision cushion (ring):TPU(ø12~25),NBR (other)/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Wear pad (ring): none (ø12~32), wear resistant material (other) 5. Piston Orem: NBR/6. Piston rod: S45C hard chrome abrasive rod/7. Body: aluminum alloy/8. Bushing: None (ø12~32), wear-resistant material (other)/9.O-ring: NBR/10. Front cover: aluminum alloy/11.C type buckle: spring steel/12. Front cover O order: NBR/13. Magnet: sintered rubidium iron boron (ø12~25), plastic (other)/14. Magnet seat: brass (12, 16), aluminum alloy (other)

Type of sealing ring :P-ACQ80-R1 NBR Material P-ACQ80-R2 Fluorine rubber material ， Installation accessories :F-ACQ80LB Axial mounting F-ACQ80FA Flange connecting plate F-ACQ80CB Binaural mount

Click to download Airtac product catalog

Product Features

1. Implement JIS standard.

2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable.

3. The inner diameter of the cylinder body is honed, with good wear resistance and durability.

4. The guiding distance of the front cover is lengthened, and the guiding performance is good.

5. Compact structure, can effectively save installation space.

6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.

7. A variety of specifications for installation accessories to choose from.
