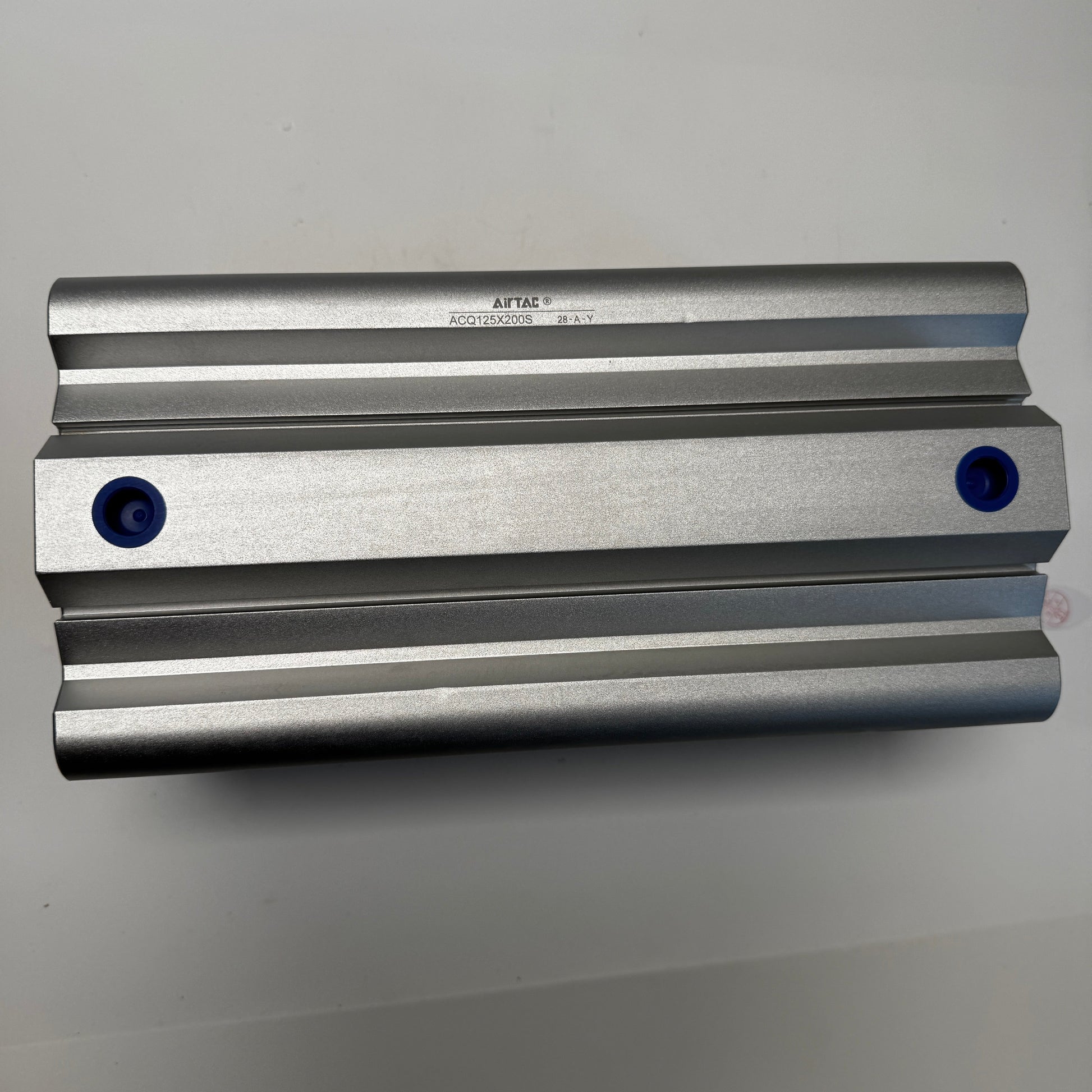

Airtac ACQ series: double acting cylinder - ACQ125X200S

Specifications: ultra-thin cylinder (double action type) Bore: 125mm Stroke: 200mm Magnet: with magnet Tooth type of piston rod: inner tooth type Tooth type: PT tooth

Specifications

1. Model: ACQ125X200S

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range mm: Travel ≤100+0/1.0, Travel ＞100+0/1.5

5. Buffer type: anti-collision pad, nozzle caliber: PT3/8

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG,EMSG,DMSH,CMSH,EMSH

Internal structure and main parts material: 1. back cover: aluminum alloy/2. Hexagon socket head screw: carbon steel/3.C type buckle: spring steel/4.O type ring: NBR/5. Piston: Aluminum alloy/6. Wear ring (pad): wear-resistant material/7. Piston O: NBR/8. Anti-collision pad: NBR/9. Body: aluminum alloy/10.O-ring: NBR/11. Front cover: Aluminum alloy/12. Self-lubricating bearings: wear-resistant materials/13. Front cover O Order: NBR/14. Piston rod: S45C hard chrome abrasive rod/15. Magnet: Rubber

Type of sealing ring :P-ACQ125-R1 NBR Material P-ACQ125-R2 Fluorine rubber material

Click to download Airtac product catalog

Product Features

1. Implement JIS standard.

2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, which is compact and reliable.

3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable.

4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

5. Compact structure, can effectively save installation space.

6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.
