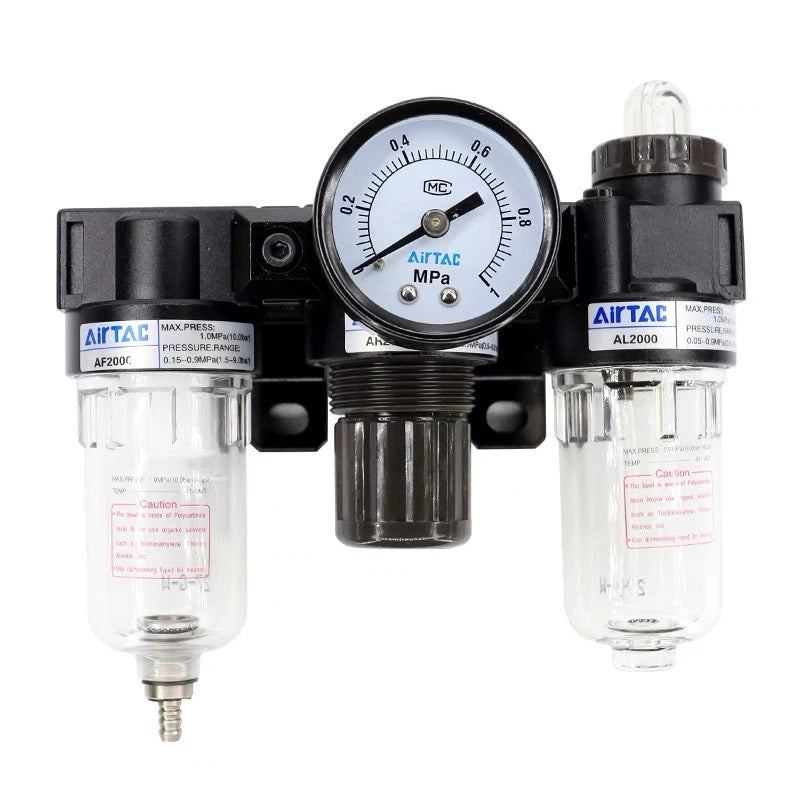

Airtac AC: series F.R.L Pneumatic Air Filter - AC2000N

Series: A series conditioning combination Nozzle caliber: 1/4" Drainage mode: differential pressure drainage type Type: Standard type (0.9MPa) Pressure gauge: not attached Filtration accuracy: 40μm level Tooth type: PT tooth

Specifications

1. Model: AC2000N

2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil

5. Components: filter: AF2000, pressure regulating valve: AR2000, oil feeder: AL2000, nozzle type with G tooth and NPT tooth optional

Internal structure: 1.AF, BF series filter/2.A, B series connecting piece/3.A, B series fixing bracket/4.AR, BR series pressure regulating valve/5.A, B series bracket fixing piece/6. Hexagon socket bolt/7.AL, BL series oil feeder

Filter cartridge :AC-40 With white 40μm filter element AC-5 With blue 5μm filter element

Click to download Airtac product catalog

Product Features

1. compact structure, easy to install and use.

2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference.

3. Low pressure loss, high water efficiency.

4. The amount of oil dripping can be directly observed through the transparent inspection cover.

5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).
