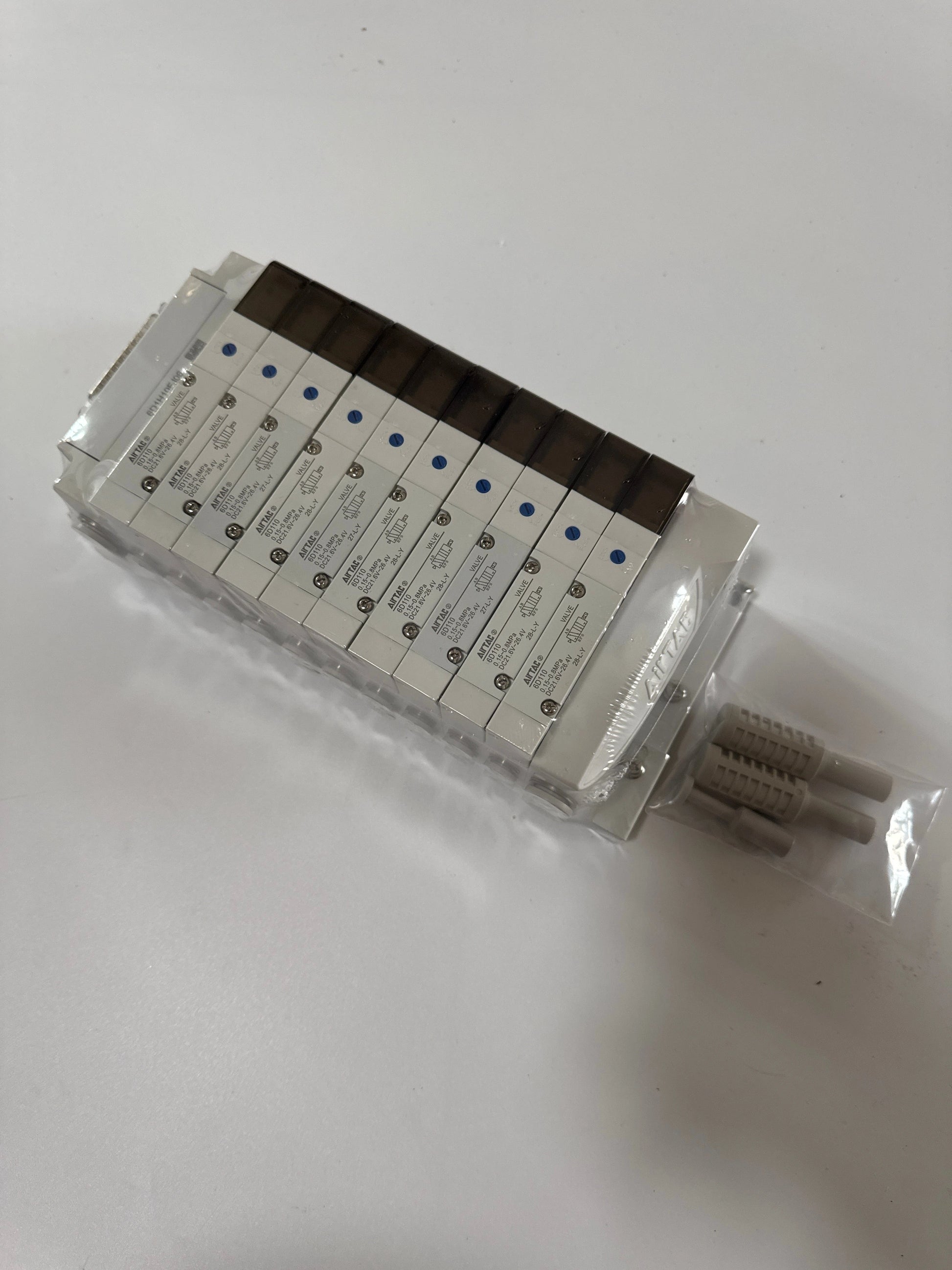

Airtac 6D100: Valve Bank Assembly -6D1H10F-J06BS10

Series: 6D100 Series Side-out integrated valve block Total number of companies: 10 companies Nozzle diameter (A/B port):ø6 quick plug connector Nozzle standard voltage: DC24V Number of single control solenoid valves: 10 Number of double-control solenoid valves: none Number of three-position middle-sealed solenoid valve: none Number of three-position relief solenoid valves: none Number of three-position medium pressure solenoid valve: None Communication protocol module specifications: without communication protocol module

Specifications

1. Model: 6D1H10F-J06BS10

2. Working medium: air (filtered by filter screen above 40μm), actuation mode: pilot type

3.3 position type with pressure range: 0.2~0.8MPa(29 ~ 114psi), other type: 0.15~0.8MPa(21 ~ 114psi); Guaranteed pressure resistance: 1.2MPa(175psi)

4. Working temperature:-20~70 ℃, intake and exhaust mode: centralized intake and exhaust, installation connection number: 3 to 21

5. Nozzle diameter A and B holes: ø4, ø6, ø8 quick plug connector nozzle, P and R holes: ø10 quick plug connector nozzle; Power connection mode: plug-in type, 25pinD-SUB

Click to download Airtac product catalog

Product Features

1. This integrated valve group adopts centralized intake and exhaust, and a single signal source input (15 pin D-SUB/25 pin D-SUB/37 pin D-SUB) design, which can simplify the wiring installation process and reduce the risk of defects caused by assembly;

2. The combination of flexible, can be connected to the number of solenoid valves for any combination;

3. The base is easy to install and can be separately locked or combined with the guide channel without additional purchase of accessories;

4. The base can be installed at the same time 2 position and 3 position solenoid valve, no need to purchase additional accessories;

5. Attached manual adjustment device function, easy to install and debug;

6. Low starting voltage and long service life.

Compared with the SMC SY series, the AirTac 6D series is a functional replacement.
