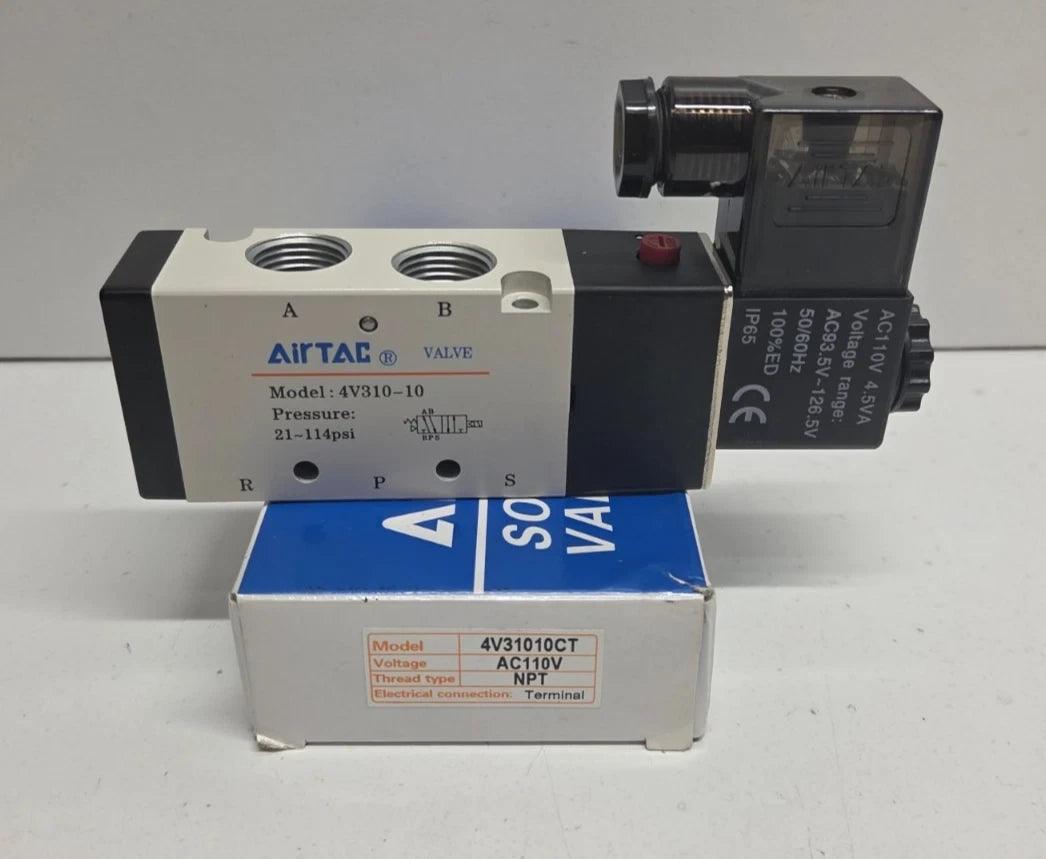

AirTAC 4V31010CT 5/2-Way Pneumatic Solenoid Valve
AirTAC 4V31010CT 5/2-Way Pneumatic Solenoid Valve
Couldn't load pickup availability
The AirTAC 4V31010CT is a 5/2-way pneumatic solenoid valve. This order code specifies 110 V AC and NPT 3/8 connections. Match the switching function and electrical entry to your circuit.
Product Features
- A sliding spool switches the supply, working and exhaust passages. AirTAC uses a finished internal bore to reduce spool friction.
- A manual override lets an installer check valve switching during setup.
- The series can be combined with the matching manifold base for multiple valves. Use the series drawing to identify the appropriate base and port layout.
Technical Specifications
| Order code | 4V31010CT |
|---|---|
| Valve function | 5/2-way |
| Solenoids | Single coil, spring return |
| Actuation | Internal pilot |
| Inlet and working ports | NPT 3/8 |
| Exhaust ports | NPT 1/4 |
| Coil voltage | 110 V AC |
| Electrical entry | Terminal connector |
| Power per coil | 4.5 VA |
| Coil voltage tolerance | ±15% |
| Coil protection / insulation | IP65 (DIN 40050) / Class B |
| Catalog energizing time | ≤0.05 s |
| Operating pressure | 0.15–0.8 MPa |
| Proof pressure | 1.2 MPa |
| Max. frequency, no load | 4 cycles/s |
| Catalog valve weight | 310 g |
| Catalog flow coefficient | Cv 1.65 |
| Working medium | Compressed air filtered through a 40 µm element |
| Ambient temperature | −20 to 70 °C |
| Body | Aluminum alloy |
| Lubrication | No added oil required |
Before You Order
Match the full order code, coil voltage and electrical entry to your existing valve. Match inlet, working and exhaust fittings separately using the drawing.
Confirm the circuit’s required rest or center function before connecting the valve. If you use lubricated air, AirTAC specifies continuing the same lubrication and lists ISO VG32 or equivalent oil.
