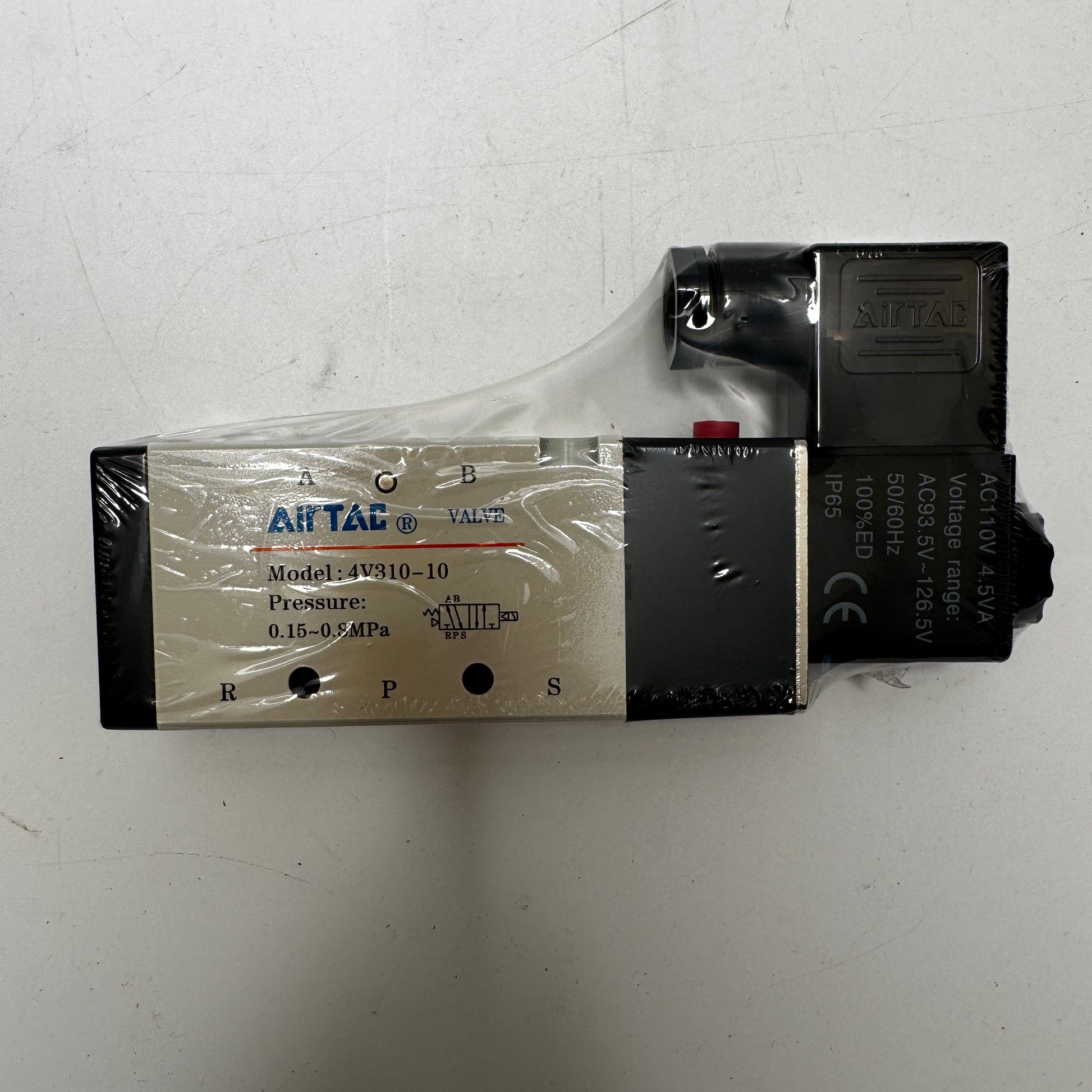

AirTAC 4V31010C-W 5/2-Way Pneumatic Solenoid Valve
AirTAC 4V31010C-W 5/2-Way Pneumatic Solenoid Valve
Couldn't load pickup availability
The AirTAC 4V31010C-W is a 5/2-way pneumatic solenoid valve with PT 3/8 working ports and a 110 V AC coil. The -W configuration has a separate M5 pilot-air connection.
Product Features
- An external air supply feeds the pilot port. The electrical signal controls the pilot and shifts the directional spool.
- The spring returns the valve to its normal position when the single coil is de-energized.
- The manual override helps check switching during installation.
- The series drawings identify the pilot connection, valve mounting dimensions and corresponding manifold interface.
Technical Specifications
| Order code | 4V31010C-W |
|---|---|
| Valve function | 5/2-way |
| Solenoid arrangement | Single solenoid, spring return |
| Actuation | External pilot (-W) |
| External pilot connection | M5 threaded pilot port |
| Inlet and working ports | PT 3/8 |
| Exhaust ports | PT 1/4 |
| Catalog flow coefficient | Cv 1.68 |
| Working medium | Compressed air filtered through a 40 µm element |
| Catalog operating pressure | 0.15–0.8 MPa |
| Proof pressure | 1.2 MPa |
| Ambient temperature | −20 to 70 °C |
| Valve body | Aluminum alloy |
| Lubrication | No added oil required |
| Coil voltage | 110 V AC |
| Coil voltage tolerance | ±15% |
| Electrical entry | Terminal connector |
| Power per coil | 4.5 VA |
| Coil protection | IP65 (DIN 40050) |
| Coil insulation | Class B |
| Catalog energizing time | ≤0.05 s |
Before You Order
Match the full -W order code, required spool position, coil voltage and wiring entry. Verify the external pilot supply and both sets of fittings against the pneumatic diagram.
Use the model drawing to locate the main supply, working ports, exhaust and M5 pilot connection. Confirm the main pipe-thread standard and leave clearance for the connector and pilot tubing.
