AirTAC 4L21006T 5-Way Push-Pull Pneumatic Valve
AirTAC 4L21006T 5-Way Push-Pull Pneumatic Valve
Couldn't load pickup availability

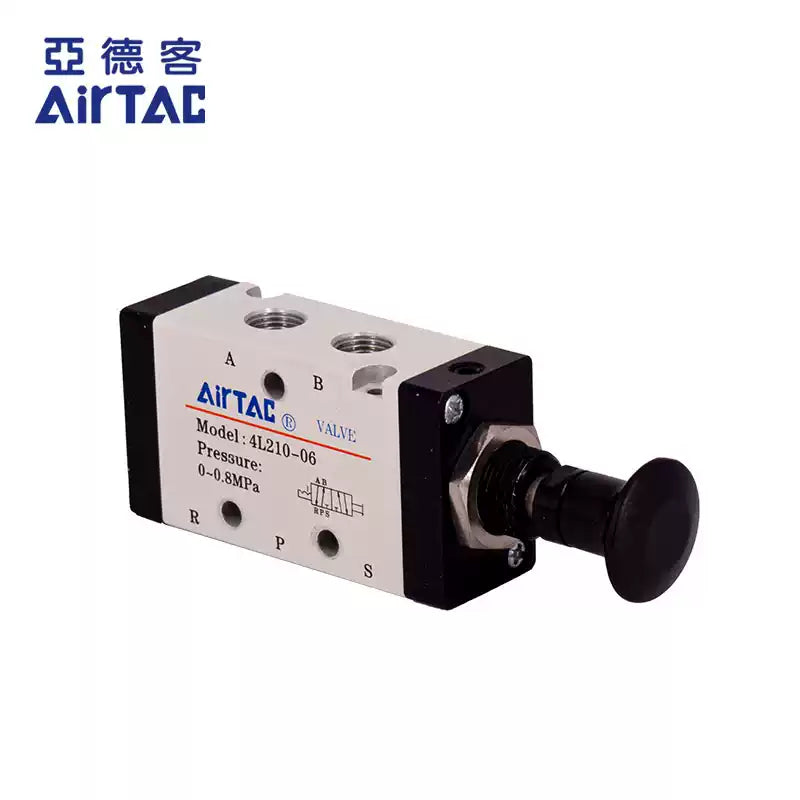

The AirTAC 4L21006T is a 5/2-way hand pull valve with NPT 1/8 inlet and working ports. The operator moves the knob to switch between the two positions.
Product Features
- The pull knob directly moves the spool without electrical actuation.
- The aluminum body has a compact form for manual control stations.
- The catalog provides a pneumatic symbol, model-specific outline and flow curves for the principal port sizes.
Technical Specifications
| Order code | 4L21006T |
|---|---|
| Valve function | 5/2-way |
| Actuation | Direct manual pull |
| Inlet and working ports | NPT 1/8 |
| Body | Aluminum alloy |
| Lubrication | No added oil required |
| Exhaust ports | NPT 1/8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
Before You Order

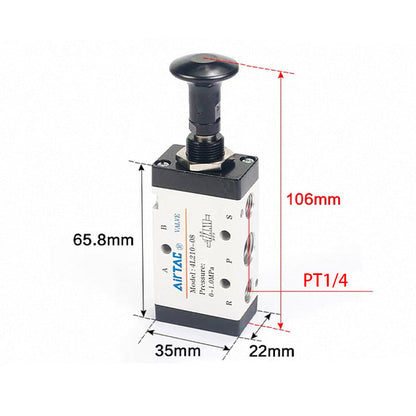

Check the mounting drawing and leave room for the knob travel. Match the working and exhaust ports against the circuit before installation.
When replacing an existing valve, match the port count and exact thread standard. If the system uses lubricated air, follow the catalog’s guidance on maintaining lubrication.
