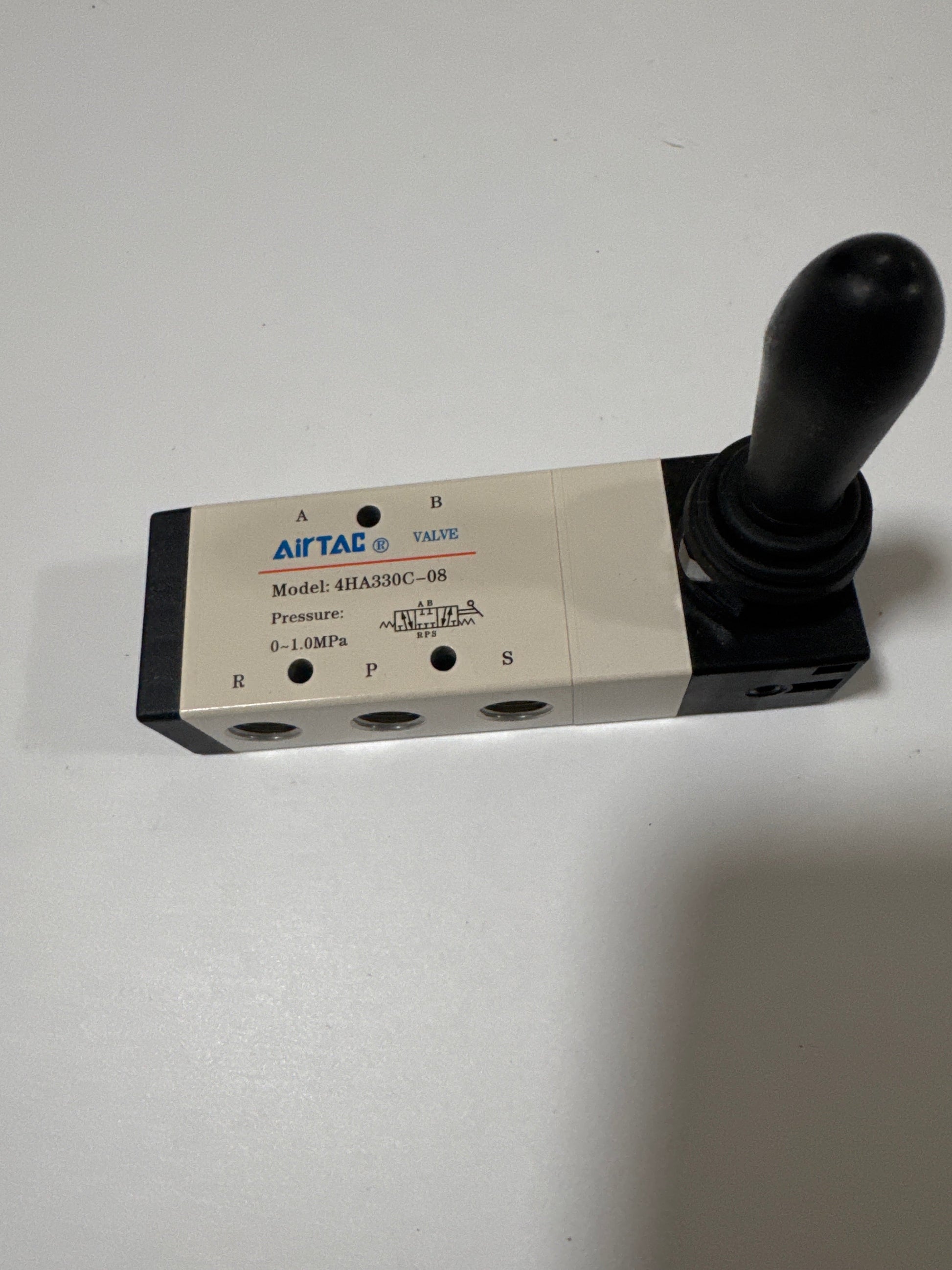

AirTAC 4HA330C08 Toggle-Operated Hand Valve
AirTAC 4HA330C08 Toggle-Operated Hand Valve
Couldn't load pickup availability
The AirTAC 4HA330C08 is a 5/3-way pneumatic hand-lever valve. This configuration has spring return (4ha) and PT 1/4 inlet and working ports.
Product Features
- The hand lever operates a sliding spool directly to switch the air circuit.
- The aluminum body can be fastened directly or mounted through a panel using the catalog arrangement.
- AirTAC’s finished bore reduces sliding friction during manual operation.
Technical Specifications
| Order code | 4HA330C08 |
|---|---|
| Valve function | 5/3-way, closed center |
| Operation | Manual direct actuation |
| Lever return | Spring return (4HA) |
| Inlet and working ports | PT 1/4 |
| Exhaust ports | PT 1/4 |
| Operating pressure | 0–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Handle movement | ±10° |
| Mounting options | Body or panel mounting |
| Catalog panel mounting | 20 mm hole, up to 6 mm thick |
| Working medium | Compressed air filtered through a 40 µm element |
| Ambient temperature | −20 to 70 °C |
| Body | Aluminum alloy |
| Lubrication | No added oil required |
Before You Order
Check lever return and center function against the pneumatic symbol before ordering. The 4H and 4HA versions use different return arrangements.
Use the series installation drawing to confirm panel thickness, cutout and handle clearance. Check the inlet, working and exhaust fitting sizes independently.
