AirTAC 4F21008F 5-Way Pneumatic Foot Valve
AirTAC 4F21008F 5-Way Pneumatic Foot Valve
Couldn't load pickup availability

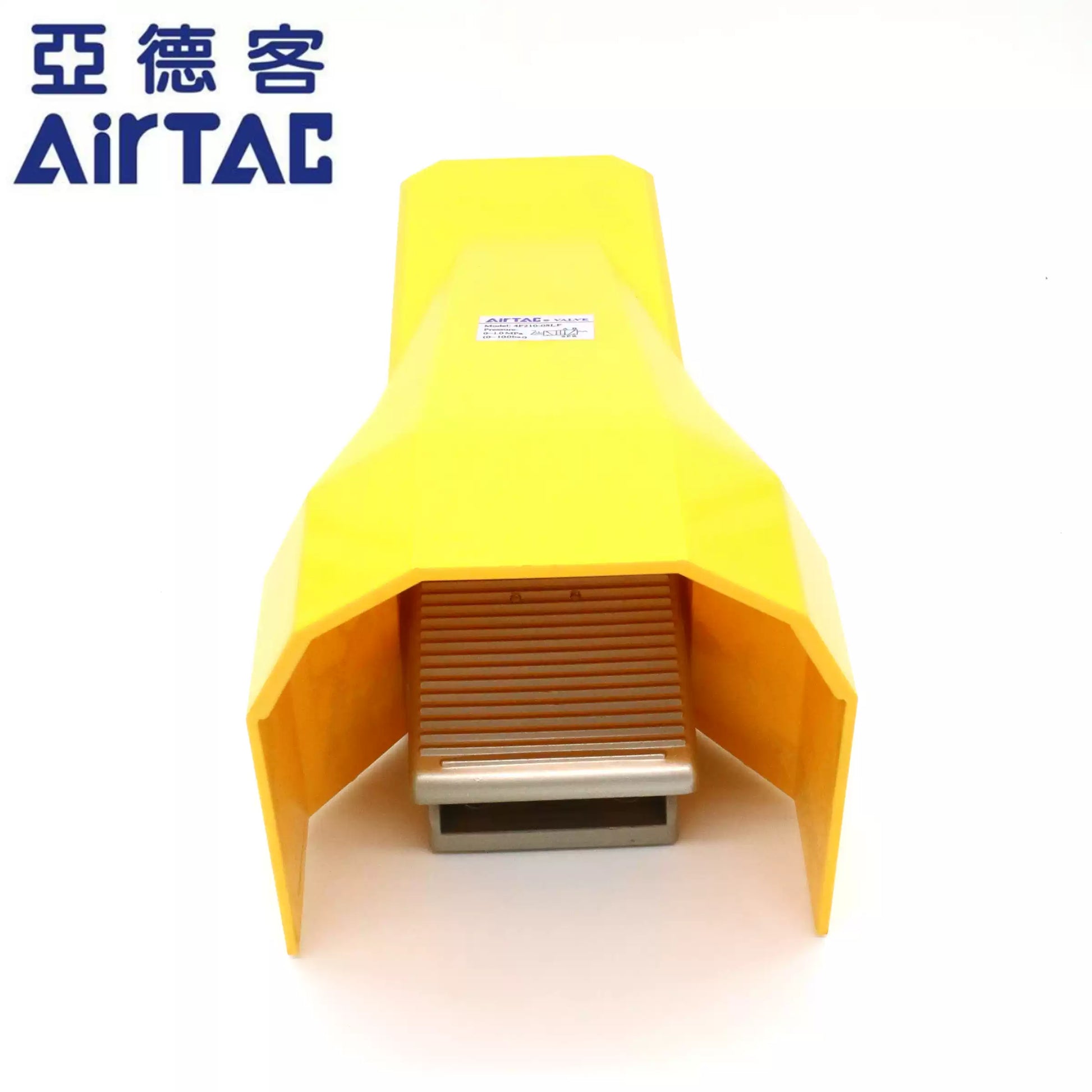

The AirTAC 4F21008F is a 5/2-way pneumatic foot pedal valve with PT 1/4 ports. The pedal switches the air path directly.
Product Features
- The aluminum alloy pedal operates the valve directly, without a coil.
- The spring returns the valve when the operator releases the pedal.
- The fitted guard covers the pedal area.
Technical Specifications
| Order code | 4F21008F |
|---|---|
| Valve function | 5/2-way |
| Actuation | Direct foot-pedal operation |
| Port size | PT 1/4 |
| Pedal and body material | Aluminum alloy |
| Latch | No |
| Guard | Included |
| Air-line lubrication | No added oil required |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
Before You Order
Match the port size and valve symbol to your circuit. Check the drawing for base mounting and room for pedal travel.
Use the drawing for the exact latch and guard option. Keep the pedal accessible and protect it from repeated hard impacts.
