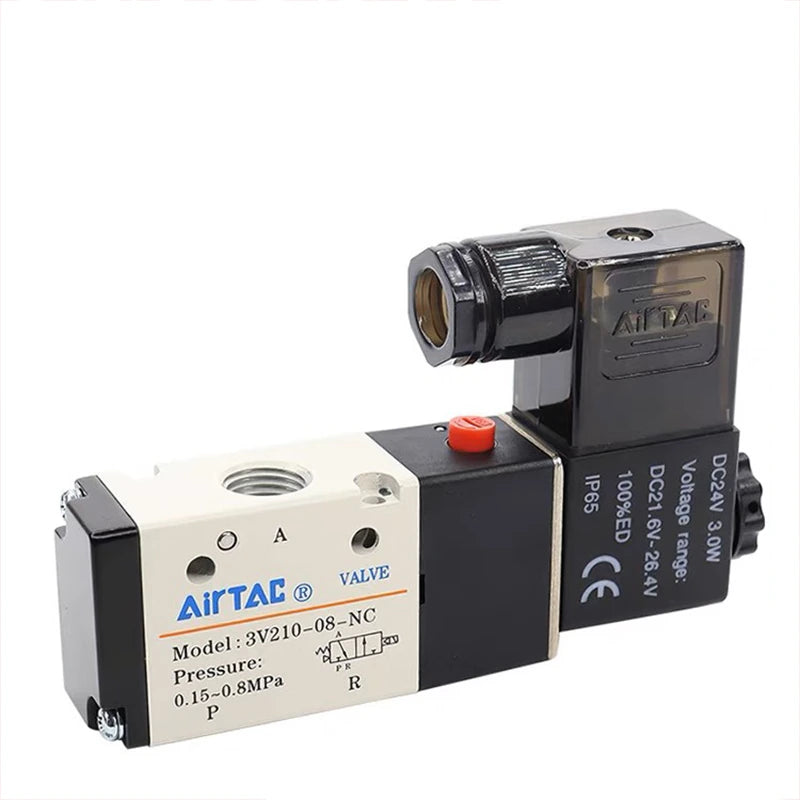

Airtac 3V210-08-NC: Solenoid valve(3/2 way) - 3V21008NCC

Specifications: three two solenoid valve Series: 200 series Electric control mode: double position single electric control Nozzle caliber: 1/4" Initial state: normally closed Standard voltage: AC110V Power connection mode: DIN socket type Tooth type: PT tooth Guide mode: internal guide

Specifications

1. Model: 3V21008NCC

2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = PT1/4

3. Effective cross-sectional area (Cv): 17.0mm²(Cv=1.0), Number of positions: three, two, lubrication: not required, use pressure range: 0.15~0.8MPa(21~114psi), Guaranteed pressure resistance: 1.2MPa(175psi)

4. Working temperature:-20~70 ℃, body material: aluminum alloy, there are G teeth and NPT teeth to choose from.

5. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil.

6. The effective cross-sectional area and Cv value are calculated according to the test flow data.

Internal structure: 1. fixed iron/2. Manual pin/3. Spring/4. Special-shaped o ling/5. Guide body/6. Special-shaped o ling/7. Axis/8.O ream/9. Ontology/10. Spring/11. Anti-drain pad/12. Bottom cover/13. Round head screws/14. Wear ring/15. Piston/16. Countersunk screws/17. Ore./18. Movable iron/19. Coil/20. retaining nut/21. Terminals

Solenoid Valve Spool Accessories :3V210-002-P1 Spool

Click to download Airtac product catalog

Product Features

1. Pilot guide mode: optional internal or external

2. Sliding column structure: good sealing, sensitive response

3. Three-position solenoid valve has three central functions to choose from

4. Double control solenoid valve with memory function;

5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life

6. No need to lubricate

7. It can form an integrated valve group with the base, saving installation space

The Airtac 3V200 valve series is a functional replacement for the SMC SYJ500 series.
