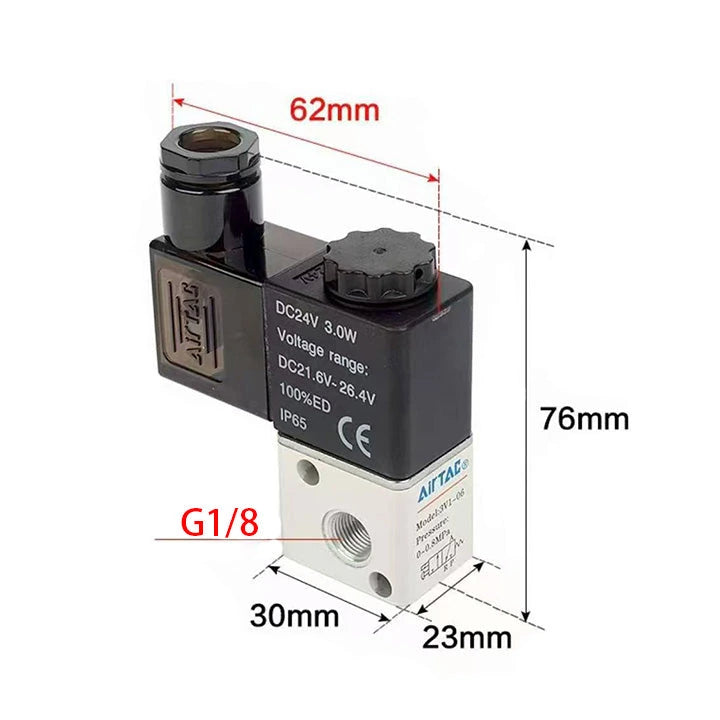

Airtac 3V1-06: Solenoid valve(3/2 way) - 3V106BG

Specifications: three two solenoid valve Series: Series 1 Nozzle caliber: 1/8" Standard voltage: DC24V Power connection mode: DIN socket type Tooth type: G tooth

Specifications

1. Model: 3V106BG

2. Working medium: air (filtered by a filter screen above 40μm), operating mode: direct-acting type, nozzle diameter: PT1/8

3. Number of positions: three, two, lubrication: not required, service pressure range: 0~0.8MPa(0 ~ 114psi), guaranteed pressure resistance: 1.2MPa(175psi)

4. Working temperature:-20~70 ℃, circulation aperture: ø1.2mm, body material: aluminum alloy, nozzle tooth type with G tooth and NPT tooth to choose from

Internal structure: 1. Terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron group/6.O order/7. Return spring/8. Ontology

Fitting Components :3V1-P30 Connecting screw foundation assembly 3V1-P31 Attaching screw combination 3V1-P32 Mounting bracket combination

Click to download Airtac product catalog

Product Features

1. Direct acting type, normally closed type, flexible commutation

2. No need for oil lubrication

3. Multiple valves can be connected in series to save installation space-need to connect screw assembly P30/P31

4. Equipped with manual device, convenient installation and debugging

5. A variety of standard voltage level optional

The Airtac 3V1 valve series is a functional replacement for the SMC VX31 series.
