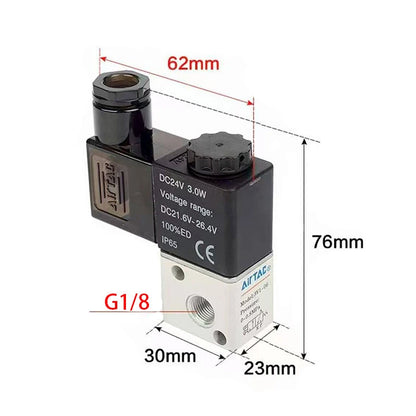

AirTAC 3V106B 3/2-Way Pneumatic Solenoid Valve, 24 V DC
AirTAC 3V106B 3/2-Way Pneumatic Solenoid Valve, 24 V DC
Couldn't load pickup availability
The AirTAC 3V106B is a 3/2-way pneumatic direct-acting solenoid valve. This order code specifies 24 V DC and PT 1/8 connections. Match the switching function and electrical entry to your circuit.
Product Features
- Direct actuation allows operation from zero pressure differential.
- The normally closed valve returns by spring when power is removed.
- The manual override helps check operation during installation. Multiple compatible 3V1 valves can be assembled where space is limited.
Technical Specifications
| Order code | 3V106B |
|---|---|
| Valve function | 3/2-way, normally closed |
| Actuation | Direct acting, single coil, spring return |
| Port size | PT 1/8 |
| Coil voltage | 24 V DC |
| Electrical entry | Terminal connector |
| Operating pressure | 0–0.8 MPa |
| Proof pressure | 1.2 MPa |
| Orifice diameter | 1.2 mm |
| Power per coil | 3.0 W |
| Coil voltage tolerance | ±10% |
| Coil protection / insulation | IP65 (DIN 40050) / Class B |
| Max. frequency, no load | 10 cycles/s |
| Catalog energizing time | ≤0.05 s |
| Working medium | Compressed air filtered through a 40 µm element |
| Ambient temperature | −20 to 70 °C |
| Body | Aluminum alloy |
| Lubrication | No added oil required |
Before You Order
Match coil voltage, electrical entry and thread against your original valve. Use the pneumatic symbol to identify the supply, working and exhaust ports.
When replacing a valve in a group, check the assembly drawing for the connection arrangement, mounting dimensions and required joining hardware.
