AirTAC 2WX05015B 2/2-Way Solenoid Valve
AirTAC 2WX05015B 2/2-Way Solenoid Valve
Couldn't load pickup availability

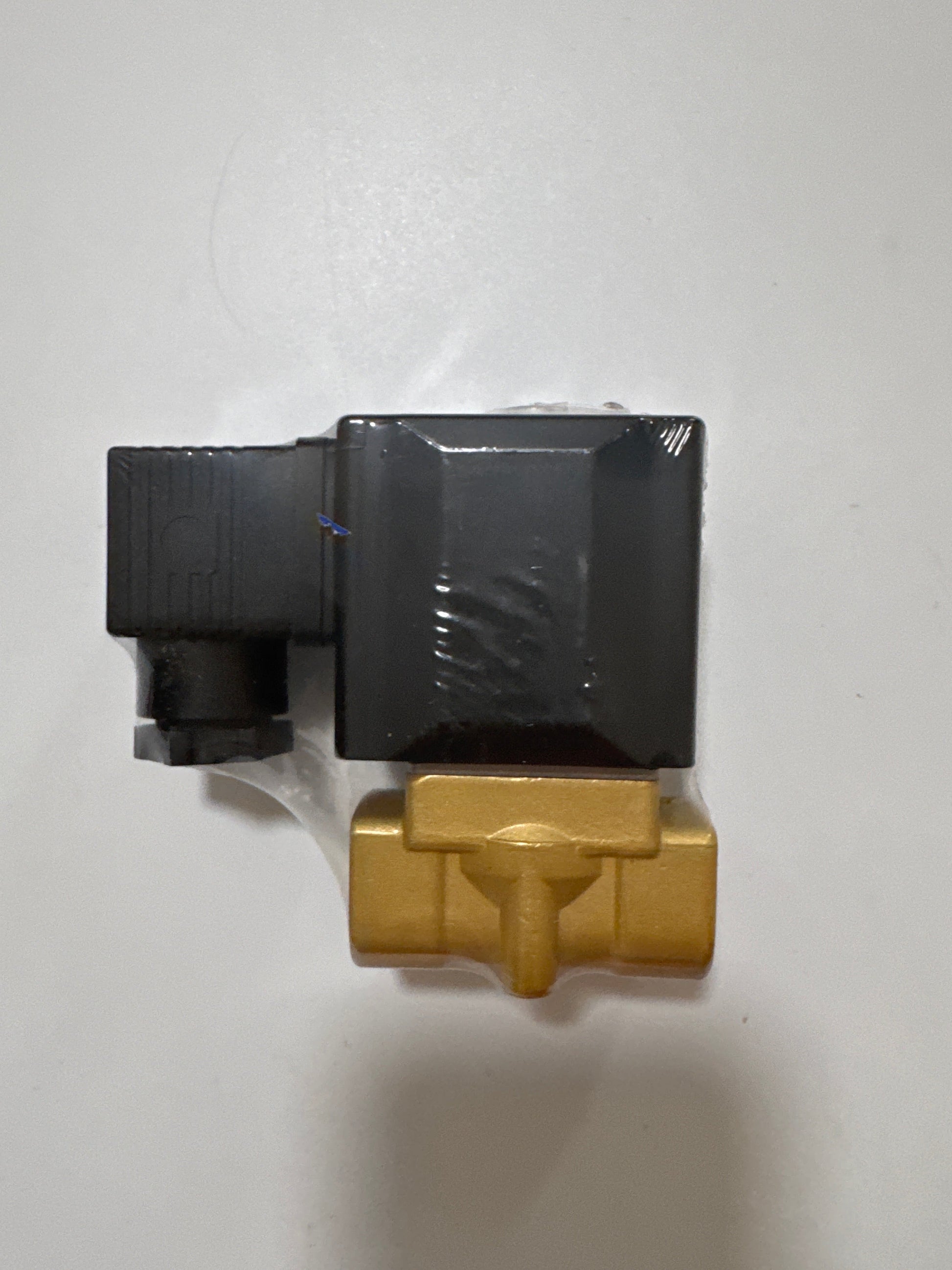

The AirTAC 2WX05015B is a normally closed 2/2-way fluid-control valve with PT 1/2 ports, a 3.0 mm orifice and a 24 V DC coil.
Product Features
- The normally closed valve returns to the shutoff position when the coil is de-energized.
- Direct actuation moves the valve element without relying on inlet pressure to open it.
- The brass body uses a Fluororubber (FPM-F) seal. Consult the manufacturer’s media data for the specific fluid and temperature.
Technical Specifications
| Order code | 2WX05015B |
|---|---|
| Coil protection | IP65 |
| Ambient temperature | −20 to 70 °C |
| Valve function | 2/2-way, normally closed |
| Actuation | Direct acting |
| Port size | PT 1/2 |
| Orifice | 3.0 mm |
| Catalog flow coefficient | Cv 0.34 |
| Operating pressure differential | Up to 3.0 MPa |
| Proof pressure | 5.0 MPa |
| Body | Brass |
| Seal | Fluororubber (FPM-F) |
| Catalog fluid viscosity limit | Below 20 cSt |
| Coil voltage | 24 V DC |
| Electrical entry | Terminal connector |
| Coil power | 12.0 W |
| Coil voltage tolerance | ±10% |
| Coil insulation | Class B |
Before You Order
Match the coil voltage, wiring style and port thread before ordering. Compare both the flow coefficient and the stated pressure differential with the application.
Use the AirTAC installation drawing to check the flow direction, body dimensions and wiring clearance. Confirm fluid and seal compatibility at the intended temperature.
