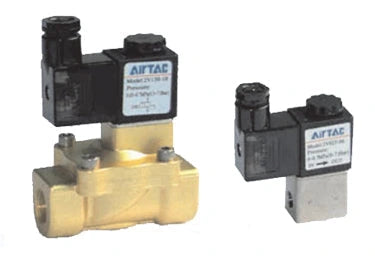

AirTAC 2V13015EG 2/2-Way Solenoid Valve, 24 V AC

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: G tooth

Specifications

1. Model: 2V13015EG

2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type

3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST

4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi)

5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds

6. Take over the tooth type G teeth, NPT teeth optional

Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology

solenoid valve diaphragm :2V130 Diaphragm

Click to download Airtac product catalog

Product Features

1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction.

2. Small and compact structure.

3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media.

The Airtac 2V series valves are a functional replacement for the SMC VXP series.
