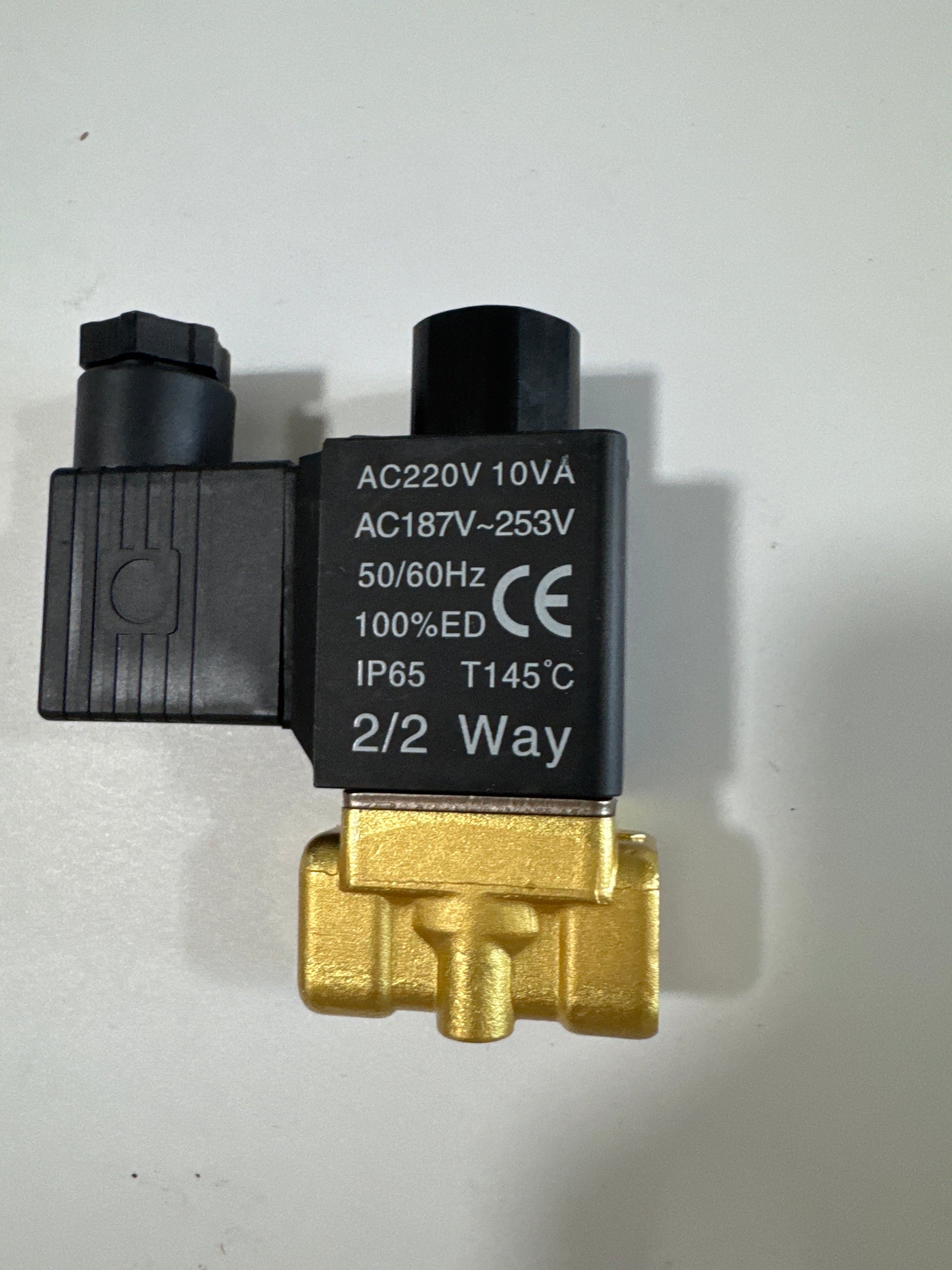

AirTAC 2KWH03006A 2/2-Way Solenoid Valve
AirTAC 2KWH03006A 2/2-Way Solenoid Valve
Couldn't load pickup availability
The AirTAC 2KWH03006A is a normally open 2/2-way fluid-control solenoid valve with PT 1/8 ports, a 2.0 mm orifice and a 220 V AC coil. Use the listed flow and pressure differential to match it to the fluid line.
Product Features
- The flow path opens when the coil is de-energized.
- Direct actuation moves the valve element without relying on an inlet-to-outlet pressure differential for pilot operation.
- The brass body and Fluororubber (FPM-F) seal correspond to the fluid applications listed for this series.
- The electrical entry and coil voltage are identified by the full order code so the valve can be matched to the existing wiring.
Technical Specifications
| Order code | 2KWH03006A |
|---|---|
| Valve function | 2/2-way, normally open |
| Actuation | Direct acting |
| Port size | PT 1/8 |
| Orifice | 2.0 mm |
| Catalog flow coefficient | Cv 0.18 |
| Operating pressure differential | Up to 1.5 MPa |
| Proof pressure | 3.0 MPa |
| Body material | Brass |
| Standard seal | Fluororubber (FPM-F) |
| Catalog media | Air, water or oil |
| Catalog fluid viscosity limit | Below 20 cSt |
| Ambient temperature | −20 to 70 °C |
| Coil protection | IP65 |
| Coil voltage | 220 V AC |
| Electrical entry | Terminal connector |
| Coil power | 15.0 VA at 50 Hz / 11.0 VA at 60 Hz |
| Coil voltage tolerance | ±15% |
| Coil insulation | Class B |
Before You Order
For a replacement, match the full order code, pipe thread, initial state, coil voltage and connector. Check the flow arrow, body dimensions and wiring clearance against the drawing.
Verify the medium and seal compatibility. Use the catalog’s medium-specific temperature table together with the operating pressure differential and flow requirements when sizing the valve.
