Product Overview

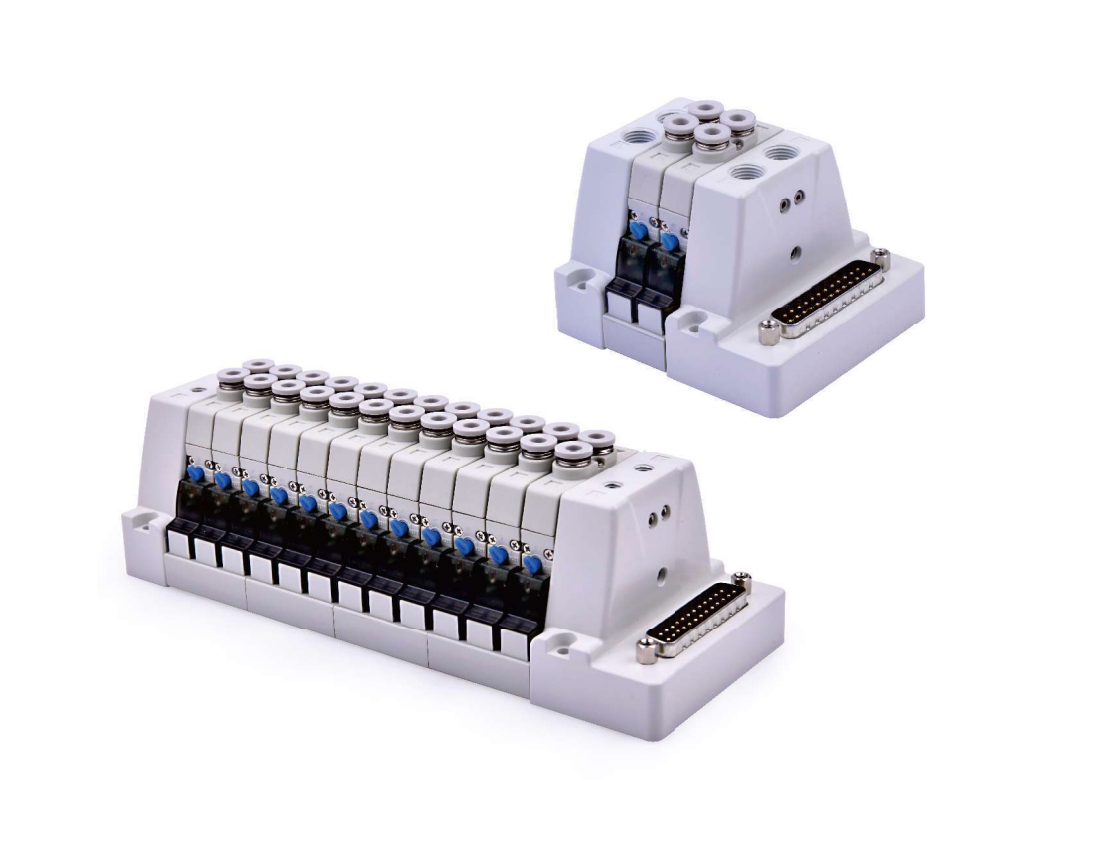

Series: AirTAC CPV10S Series Integrated Manifold Valves
Port Size: Working port (Port A) accommodates tubing with an Outer Diameter (OD) of Φ4.0mm.
Voltage: Control coil voltage is DC24V.
1. Product Introduction
The CPV10S series is a highly integrated range of 3-port 2-way direct-acting solenoid valve manifolds, specifically developed by AirTAC for precision automation equipment. By unifying the air intake, exhaust, and electrical connections (via a standard 25-pin D-Sub interface), this product significantly saves installation space, simplifies wiring, and reduces the need for additional accessories. It is ideal for industrial applications with limited space, high cycle frequencies, and high maintenance efficiency requirements.
2. Core Features
Space Optimization & Simplified Wiring
Unified air supply, exhaust, and power connections eliminate redundant piping and cabling.
Standard 25-pin D-Sub plug-in interface ensures rapid connection and easy maintenance.
Flexible configurations available from 4 to 24 stations.
Convenient Commissioning & Maintenance
Each solenoid valve is equipped with a manual override for debugging or troubleshooting during power-offs.
Significantly reduces on-site installation and maintenance time.
Stability, Low Power Consumption & Long Service Life
Low starting voltage ensures stable operation even under voltage fluctuations.
Low power design (DC 0.7W) minimizes coil heat generation and extends service life.
Direct-acting structure provides faster response times for high-frequency applications.
Durability & Environmental Adaptability
Operating pressure range: 0～0.8MPa (0~114psi);Proof pressure: 1.2MPa(175psi).
Operating temperature range: -20~70°C; Dust-proof rating suitable for various industrial environments.
3. Technical Specifications
| Parameter Category | CPV10SB | CPV10SF |
| Fluid | Air (filtered by≥40μm element) | Air (filtered by≥40μm element) |
| Acting Type | Direct-acting | Direct-acting |
| Number of Stations | 4 ~ 24 Stations | 4 ~ 24 Stations |
| Electrical Connection | Plug-in, 25-pin D-Sub | Plug-in, 25-pin D-Sub |
| Inlet/Exhaust Port | M5 | M5 |
| Working Port Size | Φ3.2mm /Φ4mm (Push-in fitting) | Φ3.2mm / Φ4mm (Push-in fitting) |
| Air Supply/Exhaust | Centralized | Centralized |
| Operating Pressure | 0～0.8MPa(0～114psi) | 0～0.8MPa(0～114psi) |
| Proof Pressure | 1.2MPa(175psi) | 1.2MPa(175psi) |
| Temperature Range | -20~70°C | -20~70°C |
| Protection Class | Dust-proof | Dust-proof |
| Standard Voltage | DC24V | DC12V |
| Voltage Range | DC±10% | DC±10% |
| Insulation Class | Class F | Class F |
| Power Consumption | DC 0.7W | DC 0.7W |
4. Recommended Applications
3C Electronics Manufacturing: Mounters, dispensing machines, testing equipment, etc.
Semiconductor: Packaging and testing equipment.
Bio-medical: Analytical instruments.
Robotics: End-effector control for small robotic arms.
Automation: High-speed, space-constrained production lines.
5. Product Value Summary
The CPV10S series manifold is more than just a pneumatic component; it is a systematic solution for space and wiring optimization:
Space Saving: Centralized pneumatic and electrical paths reduce the footprint in cabinets and workstations.
Reduced Down-time: Fast plug-and-play setup and manual overrides for efficient debugging.
Operational Efficiency: 0.7W low power consumption reduces heat and lowers energy costs.
Reliability: High pressure resistance and wide temperature adaptability ensure long equipment duty cycles.
