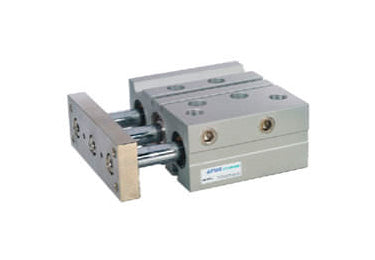

Airtac TCM: Guided Air Cylinder, Dual Rod - TCM50x50ST

Guided pneumatic cylinder, dual rod, double acting, bronze bearing, 50mm bore, 50mm stroke, with magnet, thread type NPTAirtac TCM cylinders are a functional replacement for the SMC MGPM series cylinders.

Pneumatic cylinder / double-acting / compact / guided
12 - 63 mm, 145 psi | TCL, TCM series

Description:
1.JIS standard is implemented;

2.Two leaders of special bearing steel and linear bearing or bronze bearing guide are used to prevent rotating. They can bear high torque and radial load;

**Note: Steel ball linear bearing: It is suitable for elevation action of cylinder or the situation requiring high precision and high bearing ability, especially for the situation requiring low frication action process. Bronze sliding bearing: it is suitable for the action that has radial load resistance. Compared with normal cylinder of same use, the horizontal impact resistance is doubled and it has stronger torsion rigidity.

3.Drive unit and guide unit are in the same barrel that no additional accessories are needed and the smallest space is required. The air intake is optional and it is convenient to install;

4.The bottom, back side and fixing plate of main body respectively has two exact orientation orifices (See ?PA orifice and the orifice in XX point), which can provide orientation installation with high precision for the special situation;

5.Four magnetic switch slots of the cylinder provide more choices;

6.Special design of main body provides multi-mount;
