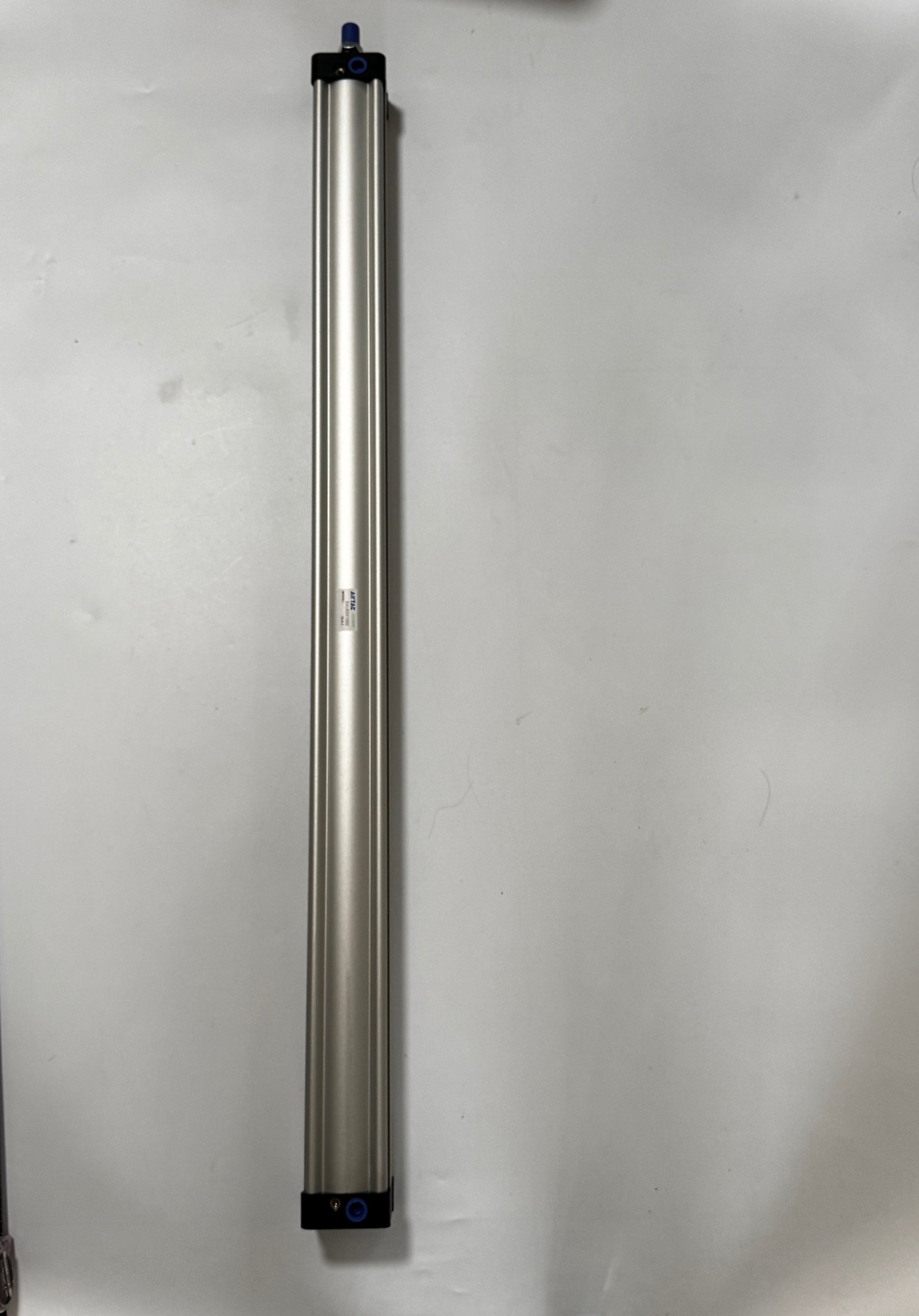

Airtac SU Series: Standard Compound Cylinder - SU63X1000

Specification: standard compound type Bore: 63mm Stroke: 1000mm Magnet: no magnet Fixed type: none Seal material: TPU Tooth type: PT tooth

Specifications

1. Model: SU63X1000

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0

5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT3/8

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG,EMSG

Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear-resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel

Type of sealing ring :P-SAU63N-R1 TPU material P-SAU63-R1 NBR Material P-SAU63N-R2 Fluorine rubber material ， Installation accessories :F-SC63LB Axial mounting F-SC63FA Flange connecting plate F-SC63CA Single-ear fixing seat F-SC63CB Binaural mount ， cylinder magnetic ring :GMED41X59.5X5 cylinder magnetic ring SAU63 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SAU63 Front cover SAU63 Rear lid

Click to download Airtac product catalog

Product Features

1. The enterprise standard cylinder.

2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

3. For the aluminum tube meter type, no pull rod, good corrosion resistance. Peripheral with sensor mounting groove, easy to use.

4. Compared with ISO15552 standard cylinders, the length of SAU series cylinders with the same bore is small.

5. The cylinder buffer adjustment is stable.

6. Cylinder mounting accessories are shared with SC series cylinders.

The Airtac SU series has been updated to the Airtac SAU series.
