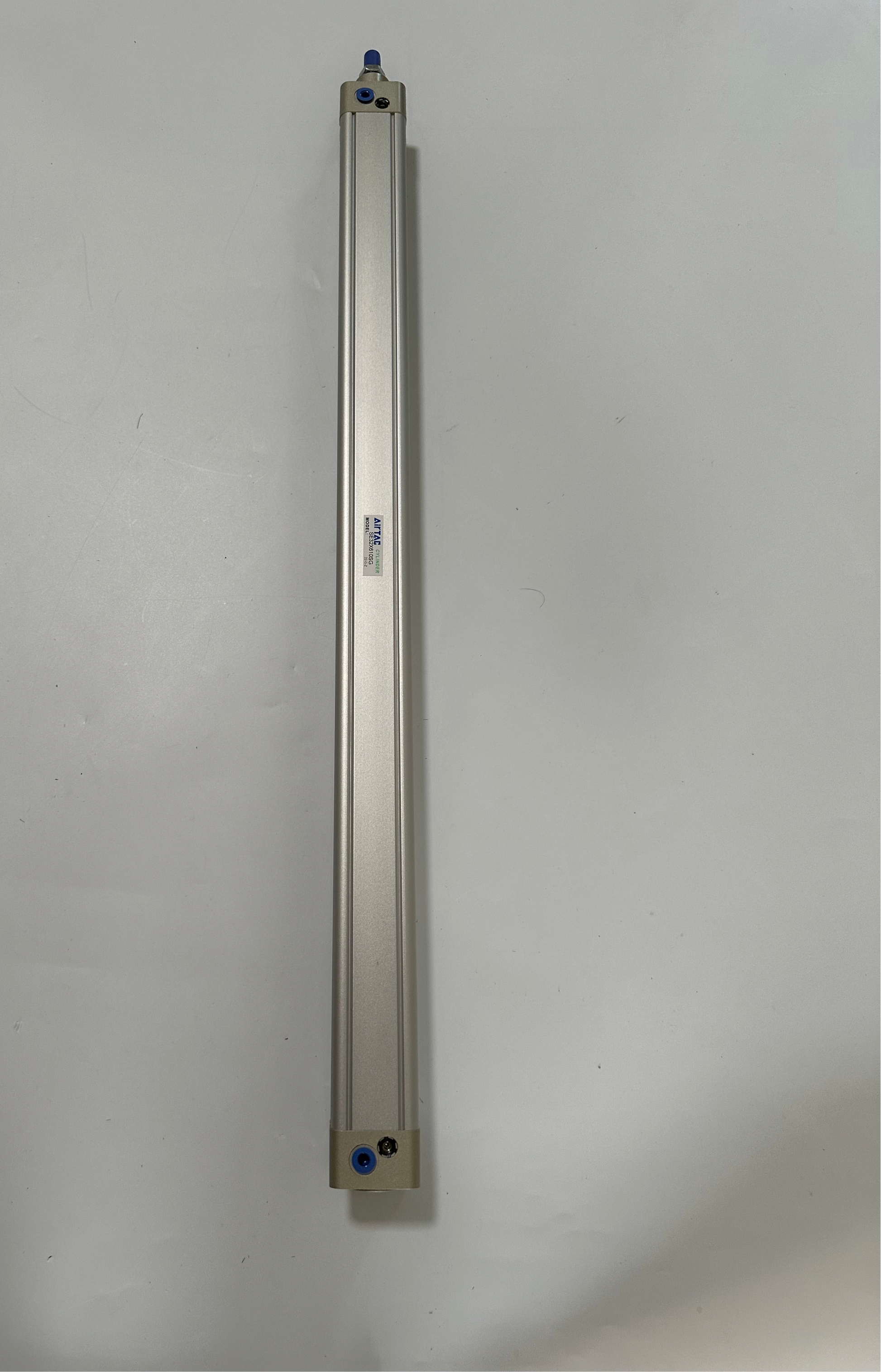

Airtac SE: Double Acting Standard Air Cylinder - SE32X610SG

Specification: standard compound type Bore: 32mm Piston rod material: medium carbon steel Travel: 610mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: G tooth

Specifications

1. Model: SE32X610SG

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0

5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/8

6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE

Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel

Type of sealing ring :P-SE32N-R1 TPU material P-SE32-R1 NBR Material P-SE32N-R2 Fluorine rubber material ， Installation accessories :F-SI32LB Axial mounting F-SI32FA Flange connecting plate F-SE32CA Single-ear fixing seat F-SE32CB Binaural mount F-SI32CR Single-ear connection seat F-SE32TC Middle Trunnion Bracket F-SI32FTC Front cover trunnion bracket F-SI32TCM1 trunnion mount F-SI32TCM2 trunnion mount ， cylinder magnetic ring :GMED17X28.8X5 cylinder magnetic ring SE32 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint ， Cylinder front cover rear cover accessories :SE32 Front cover SE32 Rear lid

Click to download Airtac product catalog

Product Features

1.ISO15552 and VDMA24562 standard cylinder.

2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure.

3. The square aluminum tube without tie rod has good corrosion resistance.

4. The cylinder buffer adjustment is stable.

5. Various specifications of the cylinder and installation accessories to choose from.
