AirTAC SDAJ16X30-10SB Adjustable-Stroke Double-Rod Cylinder, 16 mm Bore x 30 mm Stroke
AirTAC SDAJ16X30-10SB Adjustable-Stroke Double-Rod Cylinder, 16 mm Bore x 30 mm Stroke
Couldn't load pickup availability

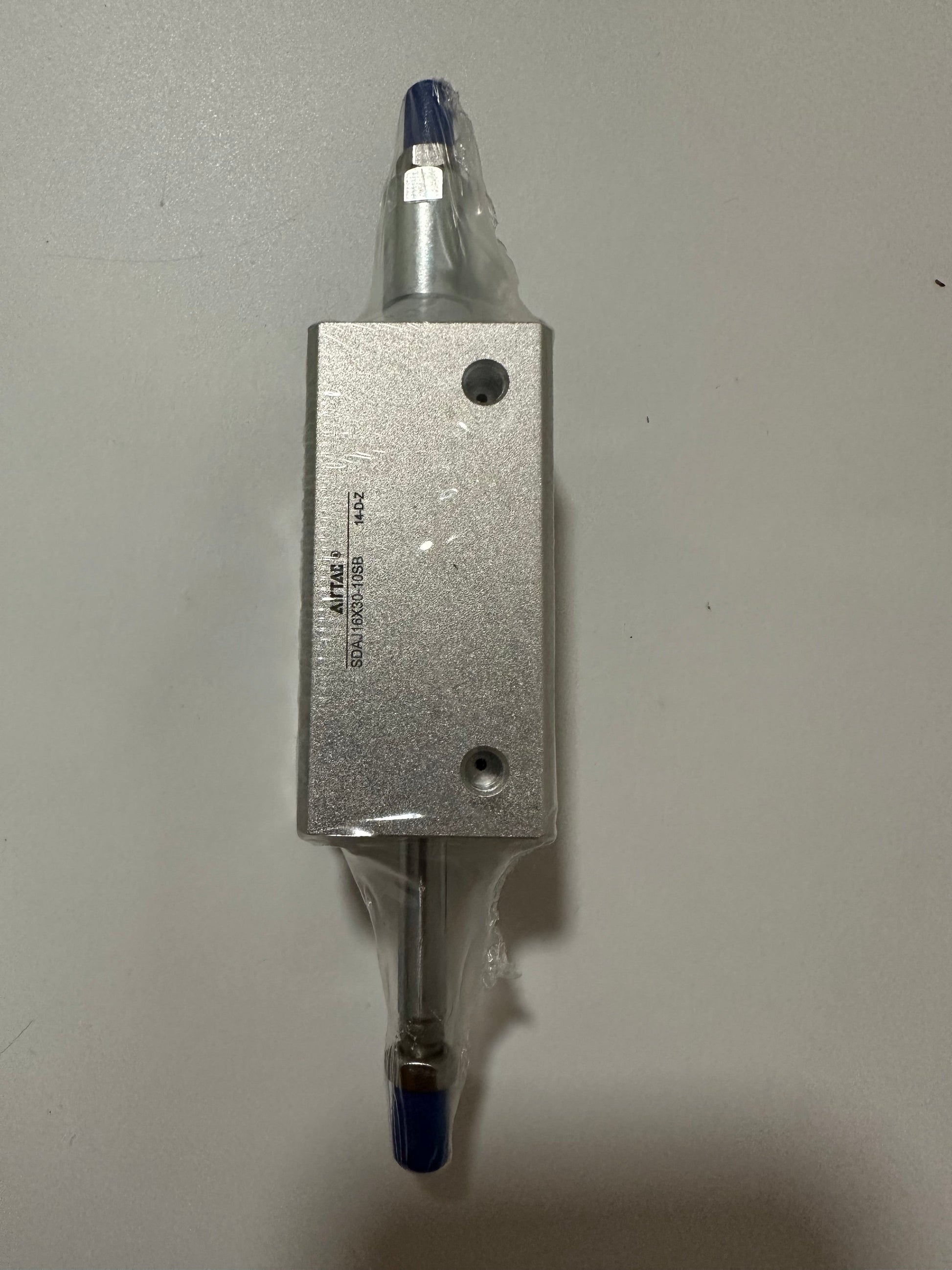

The AirTAC SDAJ16×30-10SB is a double-acting adjustable-stroke compact pneumatic cylinder with a 16 mm bore and 30 mm stroke. The magnetic piston can be used with a compatible position sensor. This configuration has a piston rod at both ends.
Product Features
- The short cylinder body helps fit an actuator into a shallow fixture or machine assembly.
- Riveted body-to-cover and piston-to-rod joints keep the assembly compact.
- The cylinder bore has a hard-anodized running surface and the bidirectional piston seal retains lubricant.
- The body has sensor grooves. Choose a compatible sensor for a cylinder configured with a magnetic piston.
Technical Specifications
| Order code | SDAJ16×30-10SB |
|---|---|
| Action | Double acting |
| Bore | 16 mm |
| Stroke | 30 mm |
| Catalog stroke adjustment code | 10 mm |
| Rod configuration | Double rod |
| Magnetic piston | Yes (S) |
| Rod end | Male thread (B) |
| Rod-end thread | M5 × 0.8 |
| Air ports | M5 × 0.8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 30–500 mm/s |
| Cushioning | Fixed end bumpers |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Compare the piston-rod end with your mating tooling and use the drawing for the exact bore and rod configuration to check the hole pattern, fastener depth and clearance.
Keep side load off the piston rod. Check the catalog outline for a nonstandard stroke, since its external dimensions can follow the next longer standard stroke.
