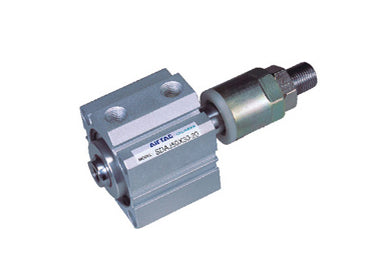

Airtac SDA: Compact Air Cylinder, Double Acting - SDA50X25

Double acting compact pneumatic cylinder, 50mm bore, 25mm stroke, without magnet, female thread, PT thread type

• Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable.

• The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.

• The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.

• Compact structure can effectively save installation space.

• There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch.

• Mounting accessories with various specification are optional.
