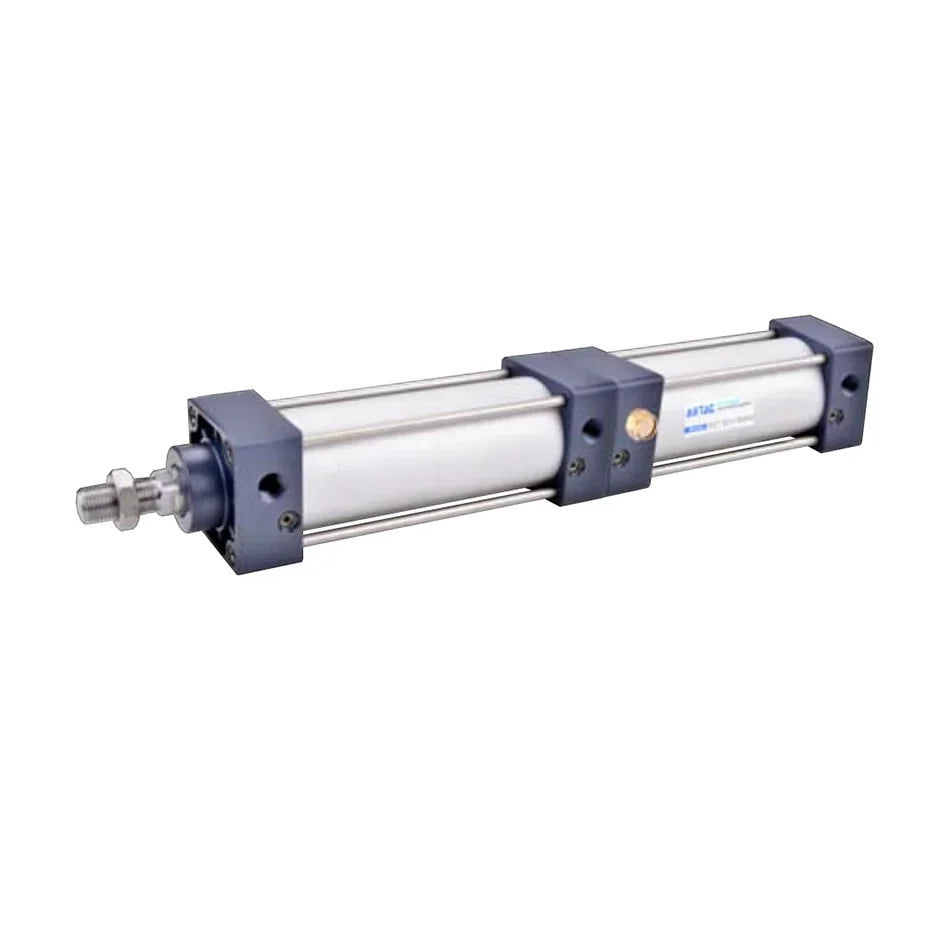

AirTAC SCT Series: Multi-position Compound Type Cylinder - SCT100X25X100S

Specifications: multi-position complex type Bore: 100mm Stroke 1:25mm Stroke 2:100mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth

Specifications

1. Model: SCT100X25X100S

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0

5. Buffer type: adjustable buffer, buffer stroke: 29, Nozzle caliber: PT1/2

6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG

Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer gasket: TPU/7. Cylinder: Aluminum alloy/8.O-ring: NBR/9. Piston O: NBR/10. Wear pad: wear resistant material/11. Magnet: plastic/12. Buffer O: NBR/13. Pipe wall O order: NBR/14. Connection seat: aluminum alloy/15. Muffler/16. Piston: Aluminum alloy/17. Hexagon Socket Screw: Carbon Steel/18. Rear cover: Aluminum alloy/19. Strut: carbon steel/20. Strut Nut: Carbon Steel

Type of sealing ring :P-SCT100N-R1 TPU material P-SCT100-R1 NBR Material P-SCT100N-R2 Fluorine rubber material ， Installation accessories :F-SC100LB Axial mounting F-SC100FA Flange connecting plate F-SC100CA Single-ear fixing seat F-SC100CB Binaural mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint

Click to download Airtac product catalog

Product Features

1. Yadke standard cylinder;

2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability.

4. The piston rod can be positioned in multiple positions during the entire movement.

5. The cylinder buffer adjustment is stable.

6. Various specifications of the cylinder and installation accessories for selection.

7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.
