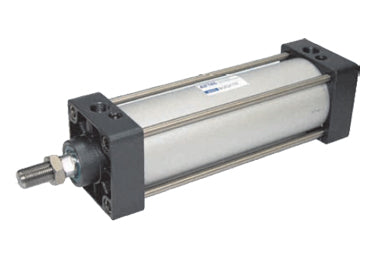

Airtac SC: Standard Air Cylinder, Double Acting - SC50X200S

Standard tie-rod pneumatic cylinder, double acting, 50mm bore, 200mm stroke, with magnet, TPU seal material, PT thread typeProduct Features

1.Standard cylinder manufactured by Airtac.
2.The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
3.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
4.Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.
5.The buffer adjustment of cylinder is smooth and steady.
6.Cylinders and mounting accessories with several specifications are optional.
7.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150 degrees celsius.
