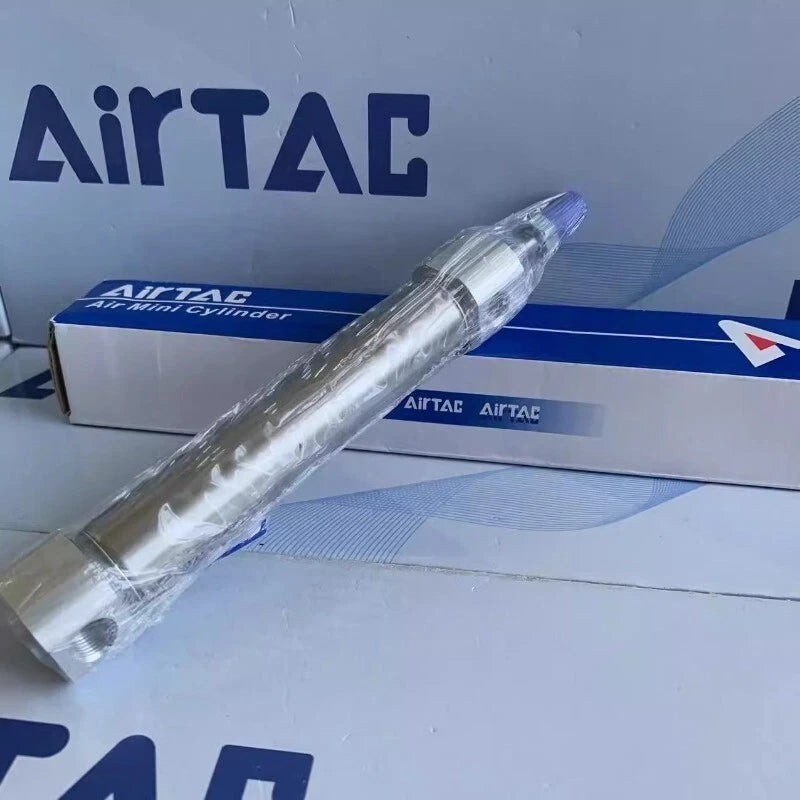

Airtac MG series: double action cylinder - MG20X150S

Specifications: Mini cylinder (compound type) Bore: 20mm Stroke: 150mm Magnet: with magnet Fixed type: no installation accessories Tooth type: PT tooth

Specifications

1. Model: MG20X150S

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5

5. Buffer type: anti-collision pad, nozzle caliber: PT1/8

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG

Internal structure and main parts material: 1. nut: carbon steel/2. Front cover O Order: NBR/3. Bushing: wear-resistant material/4. Anti-collision gasket: TPU/5. Piston O: NBR/6. Wear ring: wear-resistant material/7. Magnet: plastic/8. Back cover: aluminum alloy/9. Piston rod: S45C hard chrome abrasive rod/10. Cylinder: Stainless steel/11. Front cover: aluminum alloy

Installation accessories :F-MG20LB Axial mounting F-MG20FA Flange connecting plate F-MG20SDB Rear Hinge Mount F-MG20CB Binaural mount ， Piston rod end joint :F-ACQ20I I Connector F-ACQ20Y Y connector

Click to download Airtac product catalog

Product Features

1. Implement JIS standard.

2. The piston adopts special-shaped two-way sealing structure, small size, and has the function of oil storage.

3. The front cover is equipped with a fixed anti-collision pad, which can reduce the impact of the cylinder reversing.

4. The front and rear covers and the stainless steel body adopt riveted roller package structure, reliable connection.

5. The cylinder is made of high precision stainless steel tube, high strength, corrosion resistance.

6. There are a variety of specifications of the cylinder and installation accessories to choose from.
