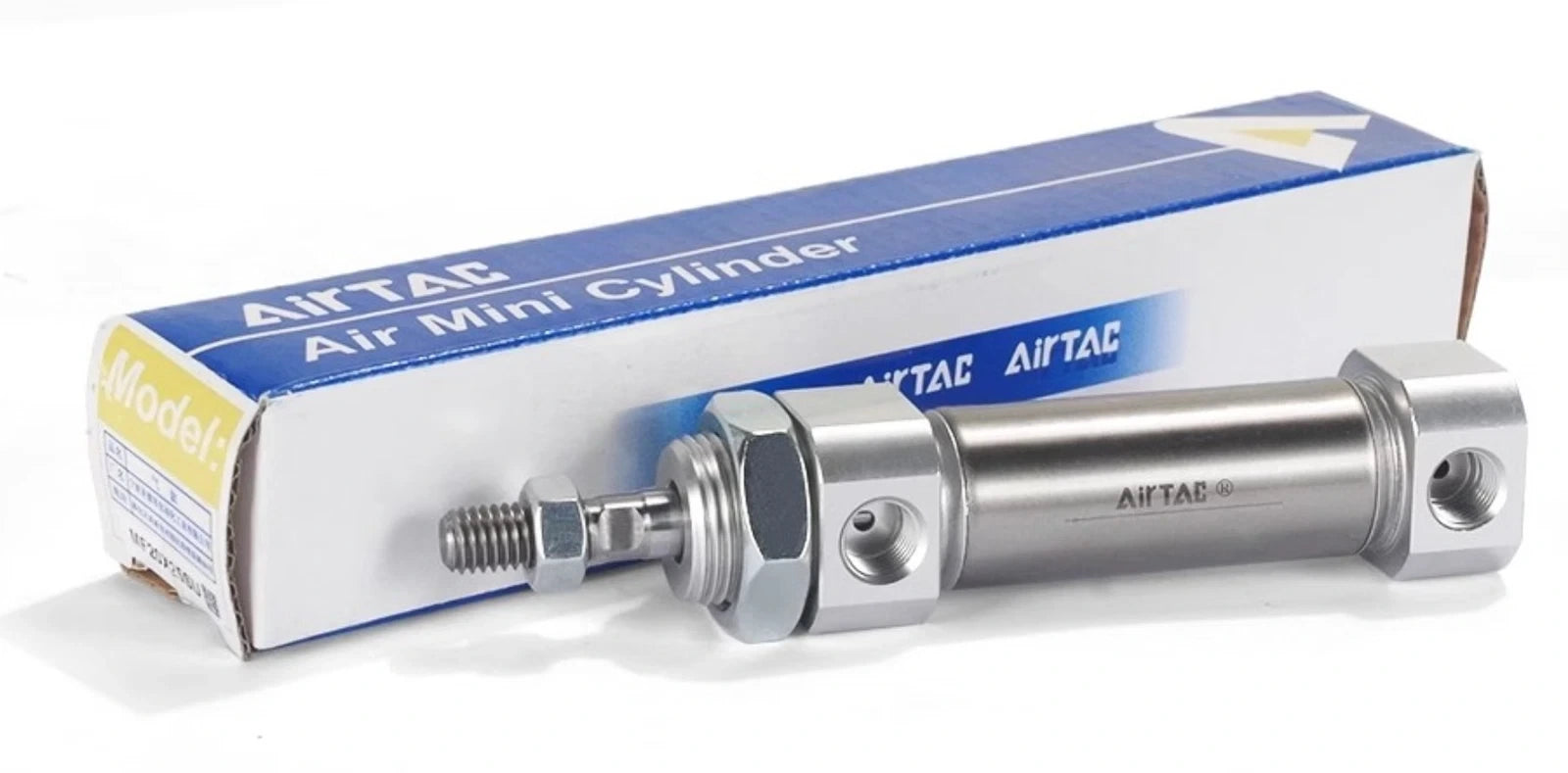

Airtac MF series: double action cylinder - MF20X100SU

Specifications: Mini cylinder (compound type) Bore: 20mm Stroke: 100mm Magnet: with magnet Rear cover type: horizontal tail type Fixed type: no installation accessories Tooth type: PT tooth

Specifications

1. Model: MF20X100SU

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5

5. Buffer type: anti-collision pad, nozzle caliber: PT1/8

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG

Internal structure and main parts material: 1. piston rod: S45C hard chrome-plated grinding rod/2. Hexagon nut: carbon steel/3. Front cover O Order: NBR/4. Hexagon nut: carbon steel/5. Bushing: wear-resistant material/6. Front cover: aluminum alloy/7. Cylinder: SU304/98. Anti-collision pad: TPU/9. Piston: Aluminum alloy/10.O-ring: NBR/11. Piston O: NBR/12. Wear pad (ring): wear-resistant material/13. Hexagon socket nut: carbon steel/14. Back cover: Aluminum alloy/15. Magnet: Sintered Rubidium Iron Boron/16. Magnet spacer: NBR/17. Magnet seat: aluminum alloy

Installation accessories :F-MF20LB Axial mounting F-MF20FA Flange connecting plate F-MF20TC Middle Trunnion Bracket F-MF20SDB Rear Hinge Mount ， Piston rod end joint :F-MF20I I Connector F-MF20Y Y connector F-M8X125F Floating joint F-M8X125U fisheye joint

Click to download Airtac product catalog

Product Features

1. Implement JIS standard.

2. The piston adopts special-shaped two-way sealing structure, small size, and has the function of oil storage.

3. The front cover is equipped with a fixed anti-collision pad, which can reduce the impact when the cylinder is reversed.

4. The rear cover has various forms, which makes the installation of the cylinder more convenient.

5. The front and back cover and the stainless steel cylinder body are riveted and rolled to form a reliable connection.

6. The cylinder is made of high precision stainless steel tube, high strength, corrosion resistance.

7. MF series cylinders are shorter than ISO6432 standard cylinders for the same bore and stroke.

8. There are a variety of specifications of the cylinder and installation accessories to choose from.
