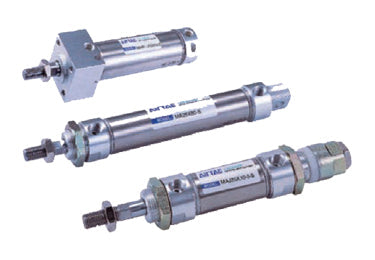

Airtac MA: Round Body Air Cylinder, Double Acting- MA40X75SCA Miniature Air Cylinder

Round body air cylinder, double acting, 40 mm bore, 75 mm stroke, with magnet, Pivot type back cover, PT threadThe Airtac round body air cylinder, MA40X75SCA, is suitable for use in your pneumatic systems.

1. Standard cylinder manufactured by Airtac;

2. Piston adopts heterogeneous two-way seal structure. It has compact size and has the function of oil reservation;

3. Front cover has fixed bumper which can reduce the impact of direction change of the cylinder;

4. There are several modes of back cover, which makes the installation of cylinder more convenient;

5. Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection;

6. The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance;

7. There are cylinders and mounting accessories with several specifications for your choice;

8. All cylinders of this series have magnet.



The Airtac MAC Series Mini Cylinder
The Airtac MAC Series Mini Cylinder is a compact pneumatic actuator engineered for reliable, precise linear motion in small-scale automation and industrial systems.

Designed with a stainless steel barrel and piston rod, the MAC series offers excellent corrosion resistance, smooth operation, and long-term durability, making it ideal for machinery with limited installation space.

🔹 Product Overview
The Airtac MAC mini cylinder adopts a double-acting operation to deliver consistent thrust in both directions. Its lightweight design ensures fast response while maintaining stability during repeated cycles.
Optional magnetic piston models enable integration with Airtac magnetic sensors for accurate stroke detection.

🔸 Key Features
• Compact & Space-Saving Design – Perfect for small machine layouts and confined spaces.
• Double Acting Operation – Stable and efficient motion in both directions.
• Stainless Steel Barrel & Rod – High corrosion resistance for extended service life.
• Magnetic Piston (Optional) – Supports sensor installation for position control.
• Multiple Mounting Options – Flange, foot, or trunnion mounting available.
• Smooth & Quiet Operation – Reduced vibration for precision applications.

🔹 Technical Specifications (Typical Range)

Specification	Description
Acting Type	Double Acting
Bore Size	Ø 12 mm – Ø 40 mm
Stroke Range	5 – 200 mm (customizable)
Operating Pressure	0.1 – 1.0 MPa
Temperature Range	–5 °C to +70 °C
Material	Stainless Steel Barrel & Rod

🏭 Applications
- Robotics: Robotic arms and grippers.
- Packaging: Automated labeling and small conveyor systems.
- Electronics: Manufacturing lines and positioning devices.
- Laboratory: Testing systems and precision mechanical equipment.

🔹 Advantages
- Compact body reduces system size.
- Lightweight for quick acceleration and deceleration.
- Long lifespan with stainless steel construction.
- Works seamlessly with Airtac FRL units, valves, and fittings.

🔸 Recommended Pairing Components
For optimal performance, combine with Airtac Solenoid Valves (4V/4A/4V2) and Magnetic Sensors.
