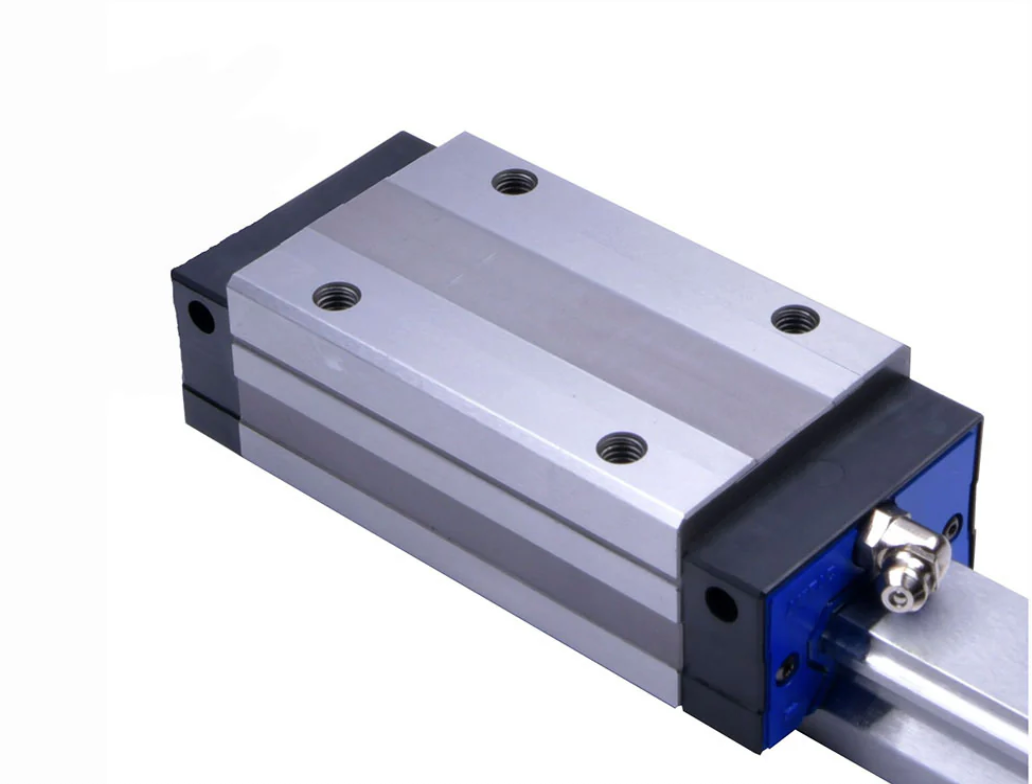

AirTAC LSH20BK-HN-N-D-M6 Linear Guide Block | D-Class Interchangeable 20mm Compact High-Precision Block

Model: LSH20BK HN N D M6

1. Executive Summary

The AirTAC LSH20BK-HN-N-D-M6 is a Group D interchangeable square block of the 20mm size from the LSH Linear Guide series.

It combines the 20mm compact size, the BK square narrow-body design, and Group D precision pairing tolerance. This means it not only saves installation space but also ensures a perfect preload match when replacing a block on an existing rail (Group D), preventing stuttering or looseness caused by tolerance mismatch. It is an ideal choice for the maintenance and modular assembly of high-precision automation equipment.

2. Model Code Decoding

Click to download the catalog

Highlighted Difference: Please pay special attention to the D code.

• LSH: Series Name — High Assembly Standard Linear Guide.

• 20: Size Specification — Nominal rail width 20mm.

  • Positioning: Lightweight, low assembly height (30mm), suitable for small and medium-sized equipment.

• BK: Block Type — Square Block.

  • Feature: Flange-less (no side wings), width is only 44mm, suitable for installations with restricted lateral space.

  • Mounting: Threaded blind-hole design; screws are locked into the block from above.

• HN:

  • H: Accuracy Class — Class H (High).

  • N: Preload Class — N (Standard Preload/No Preload), light load, low resistance.

• N: Dust Protection Code — Standard Dust Protection (end seals).

• D: Pairing/Interchange Code — Group D Pairing.

  • Core Value: This indicates the block groove dimensions have been strictly screened and belong to the D tolerance group. When maintaining or purchasing a block separately, specifying "D" ensures a perfect match with your existing "D" group rail, restoring the original factory operating feel.

• M6: Grease Nipple Spec — Standard M6 threaded oil nipple connector.

3. Core Technical Advantages

A. Group D Precision Interchangeability

Blindly replacing blocks is a common mistake in aftermarket maintenance. The LSH20BK-...-D clearly specifies the tolerance group. Compared to standard generic parts shipped randomly, the Group D block ensures that after replacement, not only does the size fit, but even the sliding resistance (friction) remains consistent with the original part.

B. 20mm Square Compact Body

This model's width is only 44mm, and the combined height is only 30mm. This "tall and thin" square design is advantageous over wider flange types in applications like XYZ axis modules with multiple parallel rails or 3C bonding equipment where internal space is extremely restricted.

C. High-Rigidity Four-Row Ball Design

Despite its small size (20mm), the internal structure still utilizes the signature LSH series design of 4 rows of ball bearings and a 45-degree contact angle. This means its rigidity under moment loads is far superior to that of double-row (miniature) guides of the same size, making it resistant to deformation.

D. Universal Replaceability

Dimensions strictly comply with international standards.

• Perfect Alternatives: Directly replaces HIWIN HGH20CA, THK HSR20B, PMI MSA20S, etc. (must confirm it is the square standard type).

4. Technical Specifications

Please note the distinction from the 25mm size:

5. Target Applications

The LSH20BK-HN-N-D-M6 is designed for precise maintenance and compact design in the following scenarios:

• Automation Line Maintenance: Replacing worn original AirTAC blocks, using the "D" pairing code to quickly restore the production line's precision.

• Electronic Assembly Equipment: Z-axis lifting mechanisms for mobile phone camera assembly and screen dispensing machines.

• Small Linear Modules: Used to build electric slides with limited width.

• Medical Testing Instruments: Sample transfer arms in blood analyzers (requiring low noise and low resistance).
