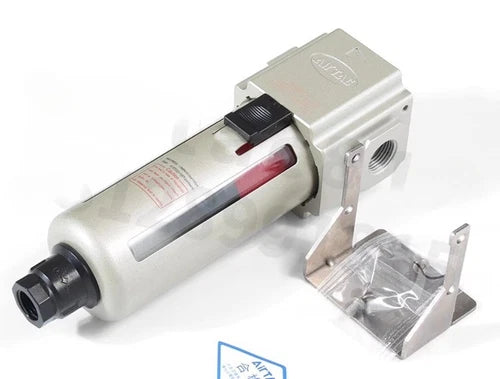

Airtac GPF300-08: Oil Mist Air Filter - GPF30008D

Series: 300 series oil mist separator Cup body material: PC cup Nozzle caliber: 1/4" Drainage mode: differential pressure + manual drainage Bracket: attached bracket Filtration accuracy: 0.01μm Tooth type: PT tooth

Specifications

1. Model: GPF30008D

2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 0.01 μm (capture efficiency: 99.9), operating pressure range: 0.15~1.0MPa(20 ~ 145psi)

3. Guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen), cup body material: polycarbonate, nylon, metal

4. Rated flow rate: 240L/min, filter cup capacity: 54.5CC, plastic cup weight: 356g, metal cup weight: 397g

5. Take over the tooth type has G teeth, NPT teeth to choose from.

6. Conditions: inlet pressure 0.7MPa, outlet pressure 0.5MPa. The rated flow varies with the inlet pressure. If the flow exceeds the rated flow, oil will flow to the secondary side. Please note.

Internal structure: 1. Oil mist separator body: aluminum alloy/2.O-ring: NBR/3. Protective cover: SPCC/4. Water cup: polycarbonate, transparent nylon, aluminum alloy/5. Filter element: polymer material/6. Level gauge inner cover: PC/7. Level gauge OOrder: NBR/8. Level gauge protective cover: SPCC/9. Drain Fitting: Plastic

Filter cartridge :GPF300-0.01 With red 0.01μm filter element GPF300-0.3 With blue 0.3μm filter element

Click to download Airtac product catalog

Product Features

1. Low pressure drop, oil mist removal efficiency up to 99%, large capacity of drainage cup.

2. Provide 0.3 micron and 0.01 micron filtration grade.

3. The drainage type has semi-automatic drainage. Two kinds of automatic drainage.

4. To meet the needs of different environments, the choice of bowl materials includes polycarbonate nylon and metal.

5. Monomer products can be equipped with mounting brackets, monomer products can be equipped with triple combination.

The Airtac GPF Air Prep Series is a functional alternative to the SMC AMF/D Series.
