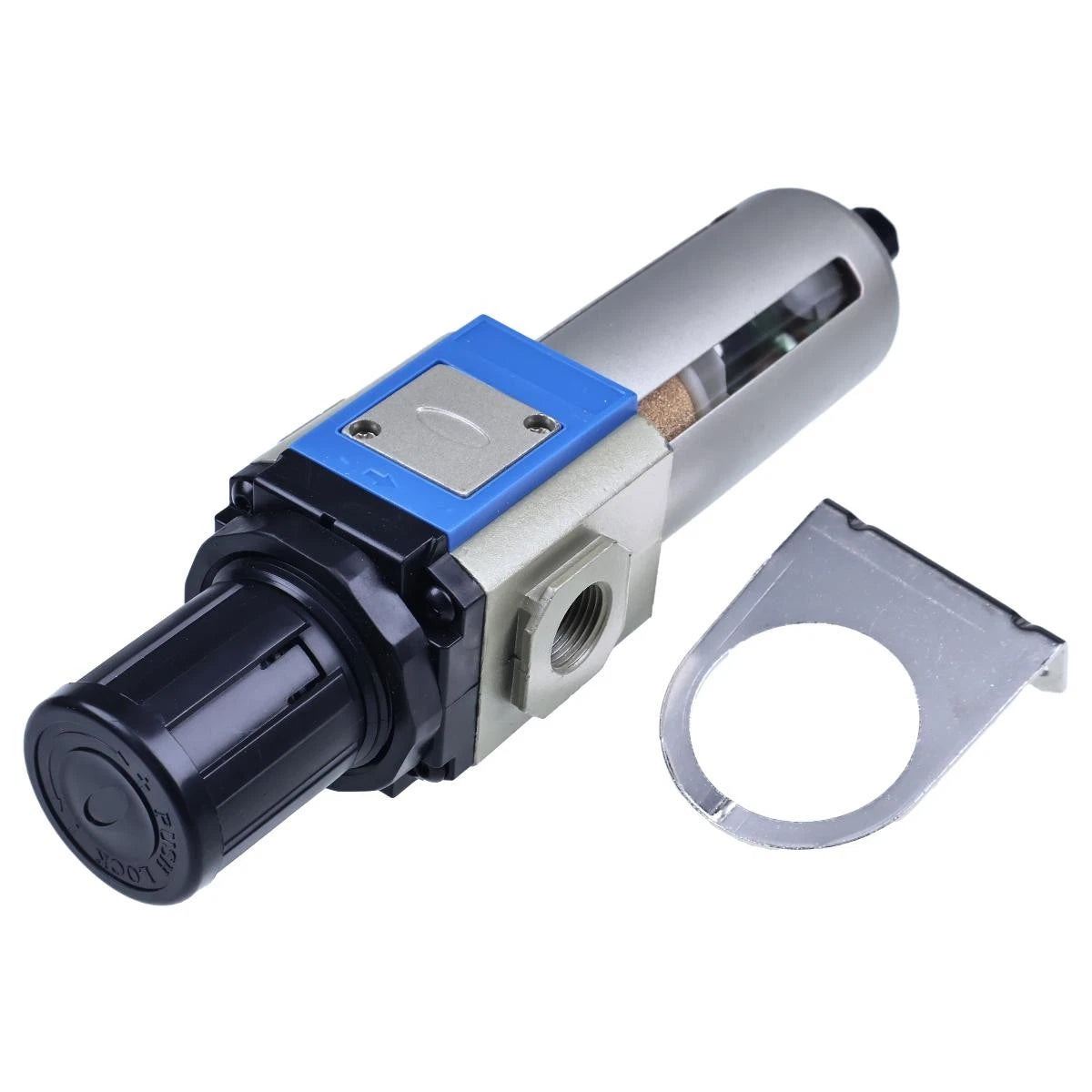

Airtac GFR Series: Pressure regulating filter - GFR30010N

Series: G300 series pressure regulating filter Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Type: Standard Bracket: attached bracket Pressure gauge: not attached Filtration accuracy: 40μm level Tooth type: PT tooth Reverse flow valve: without reverse flow valve

Specifications

1. Model: GFR30010N

2. Working medium: air, nozzle diameter: PT3/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Water filter cup capacity: 40CC, weight: 500g, with G teeth and NPT teeth available for nozzle type

Internal structure: 1. filter cup: aluminum alloy (GFR600),PC (other)/2. Umbrella type fixing seat: POM high viscosity/3. Filter element: HDPE/4. Diverter: POM high viscosity/5.O-ring: NBR/6. Pressure regulating water filter body: aluminum alloy/7. Pressure regulating column: brass (GFR600),POM (other)/8.O-ring: NBR/9. Main pressure diaphragm: SUS304 encapsulated/10. Retaining ring cap: Aluminum alloy (GFR600),POM (other)/11. Main adjustment finale: 08A/12. Main pressure regulating hexagonal cap: 08A/13. Main pressure regulator: POM/14. Spring: SWC/15. Main pressure regulator seat: aluminum alloy (GFR600),POM (other)/16. Feedback catheter: POM/17. Pressure regulating plug head: fast cutting steel coated with rubber/18.O-ring: NBR/19. Spring: SUS304/20. Level gauge protective cover: SPCC/21. Level gauge anti-leakage pad: rubber/22. Level gauge inner cover: PC

Drainer :AD300G06 Automatic drainer GFR300 Differential pressure drain GFR300 Manual Drainer ， Filter water cup oil cup :GFR300 Water cup with drain GFR300 Water cup without drain

Click to download Airtac product catalog

Product Features

1. Embedded square pressure gauge saves installation space (optional external circular pressure gauge).

2. Push-in self-locking mechanism can prevent the set pressure from being changed by external interference.

3. The balanced design of the pressure adjustment mechanism ensures stable pressure adjustment, minimum drift and excellent pressure characteristics.

4. In addition to standard models, low pressure models (maximum adjustable pressure 0.4MPa) are also available.

5. The unique diversion structure makes the passing gas rotate properly, effectively separating the liquid and reliably filtering the solid particles.

6. Filtration precision is available at 5μm and 40μm.

7. There are three drainage methods: manual, differential pressure and automatic.

8. Optional fixed bracket installation.
