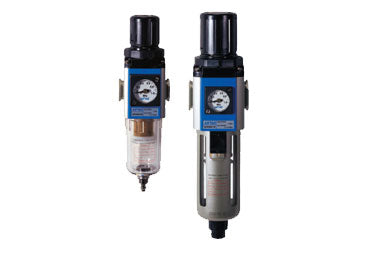

Airtac GFR: Air Filter Regulator - GFR60020AC1 (DC)

Air filter and regulator, 3/4" PT port, 230cc Capacity, automatic drain, Standard pressure, with Bracket, circle pressure gauge, MPa scale, 40 micron filterProduct Features:
1.Embedded square pressure gauge is used to save installation space. (External circular pressure gauge is also optional.)
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere;
3.Balanced design is adopted for the pressure adjustment mechanism.
4.In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa);
5.Unique diversion structure makes air flowing through properly rotate, which can more effectively separate the liquid from gas and reliably filter the solid grain;
6.The filtering grade includes 5 micron and 40 micron (optional);
7.Three drain types are available: manual drain, semi-auto drain and automatic drain.
8.The bracket can be used for installation.








The Airtac GFR60020AC1, as part of the GFR600 series, is an air filter and regulator designed for use with pneumatic industrial equipment.
