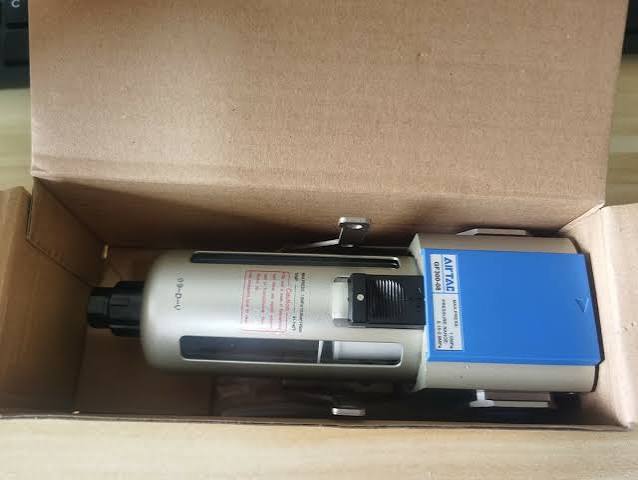

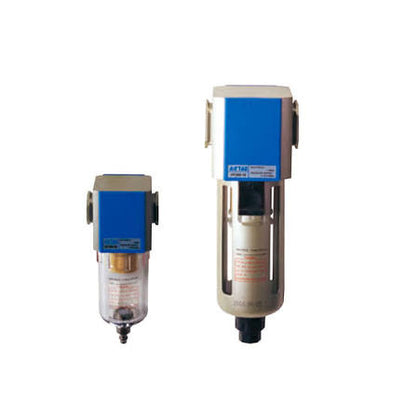

Airtac GF Series: Filters - GF30008

Series: G300 Series Filter Nozzle caliber: 1/4" Drainage mode: differential pressure drainage type Bracket: attached bracket Filtration accuracy: 40μm level Tooth type: PT tooth

Specifications

1. Model: GF30008

2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 40μm or 5μm, operating pressure range: 0.15~1.0MPa(20 ~ 145psi)

3. Guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (unfrozen), filter cup capacity: 40CC, weight: 360g

4. Take over the tooth type has G teeth, NPT teeth to choose from

Internal structure: 1. water filter body: aluminum alloy/2.O ring: NBR/3. Diverter: POM high viscosity/4. Filter: HDPE/5. Umbrella type fixing seat: POM high viscosity/6. Water filter cup: aluminum alloy (GF600),PC (other)/7. Level gauge protective cover: SPCC/8. Level gauge anti-leakage pad: fluorine rubber/9. Level gauge inner cover: PC

FIXED MOUNTING BRACKET :GF300 Fixed bracket ， Drainer :AD300G06 Automatic drainer ， Filter cup :GF300 Water cup with drain

Click to download Airtac product catalog

Product Features

1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles.

2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large.

3. Filtering precision 5μm.40μm optional.

4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional.

5. Optional use of fixed bracket installation.
