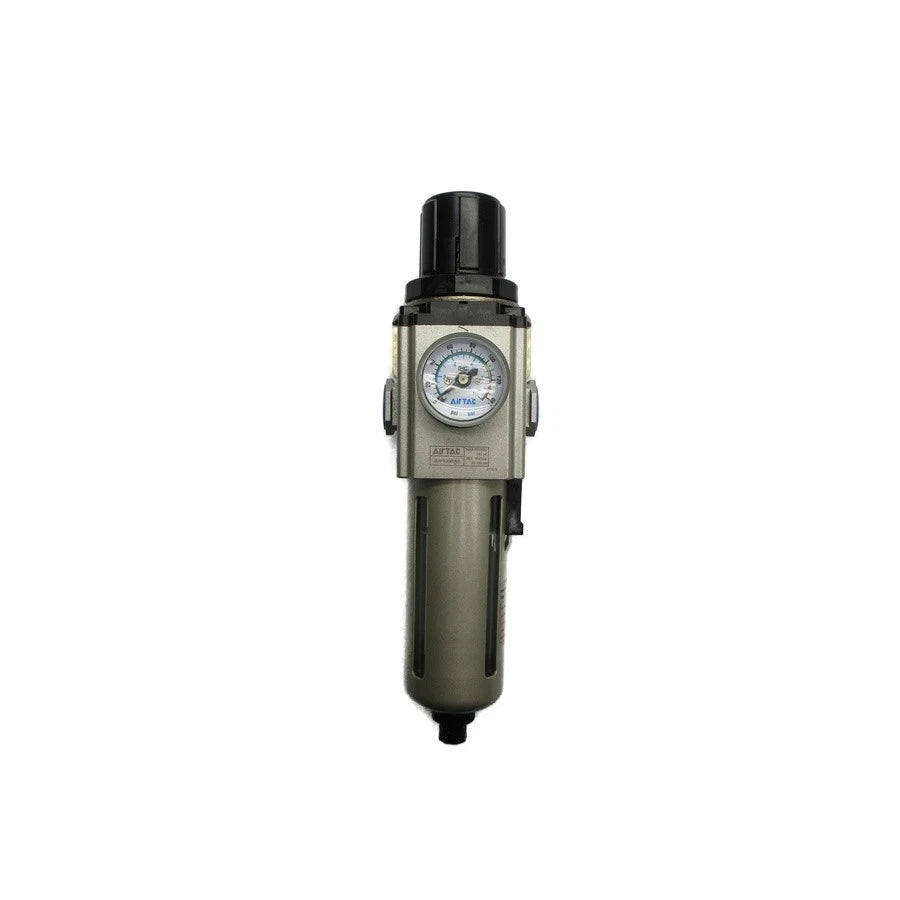

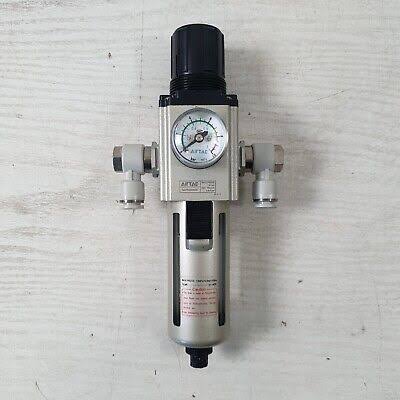

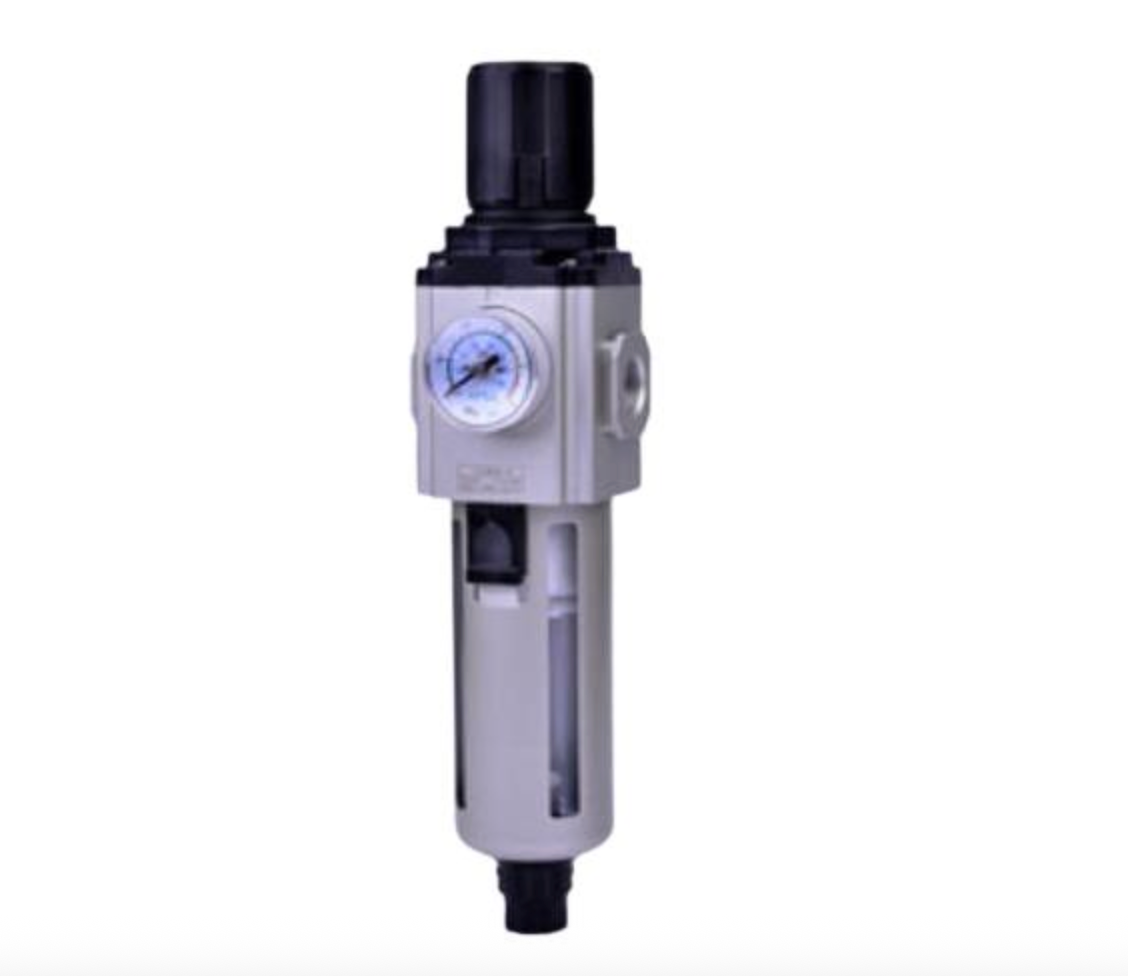

Airtac GAFR200: Air Filter Regulator - GAFR20008S

Series: GA200 series pressure regulating filter Cup body material: PC cup Nozzle caliber: 1/4" Drainage mode: differential pressure + manual drainage Type: Standard Bracket: attached bracket Pressure gauge: round gauge snap type Filtration accuracy: 40μm level Dental type: PT tooth (MPa/psi) Reverse flow valve: without reverse flow valve

Specifications

1. Model: GAFR20008S

2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Water filter cup capacity: 25CC, weight: 290g, with G teeth and NPT teeth available for nozzle type

Internal structure: 1. filter cup: PC, transparent nylon, aluminum alloy/2. Protective cover: SPCC/3. Umbrella seat: POM high viscosity/4. Diverter: POM high viscosity/5. Filter element: HDPE/6.O-ring: NBR/7. Pressure regulating water filter body: aluminum alloy/8. Pressure regulating column: brass (600),POM (other)/9.O ring: NBR/10. Main pressure diaphragm: NBR/11. Retaining ring cap: Aluminum alloy (600),POM (other)/12. Main adjusting pressure shaft: fast cutting steel/13. Main pressure regulating hexagonal cap: fast cutting steel/14. Main pressure regulator: POM/15. Spring: SWPB/16. Main pressure regulating seat: aluminum alloy (600),POM (other)/17. Feedback catheter: POM/18. Pressure regulating plug head: aluminum alloy/19.O-ring: NBR/20. Spring: Stainless steel

Filter cartridge :GAFR200-40 With white 40μm filter element GAFR200-5 With blue 5μm filter element ， Filter water cup oil cup :GAFR200 Water Cup Metal Cup GAFR200 Oil cup

Click to download Airtac product catalog

Product Features

1. Use round square pressure gauge with clip and magnifying glass to save installation space.

2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference.

3. The pressure regulating mechanism adopts balanced design.

4. The unique flow guide structure makes the air flow through the rotation, effectively separates the liquid from the air, and reliably filters the solid particles.

5. The filter grade is 5 microns, 40 microns (optional).

6. There are two types of drainage: semi-automatic drainage and automatic drainage.

7. The bowl body is made of PC nylon and metal, and can be installed with bracket.

The Airtac GAFR200-600 air preparation series is a functional alternative to the SMC AW20-40 series.
