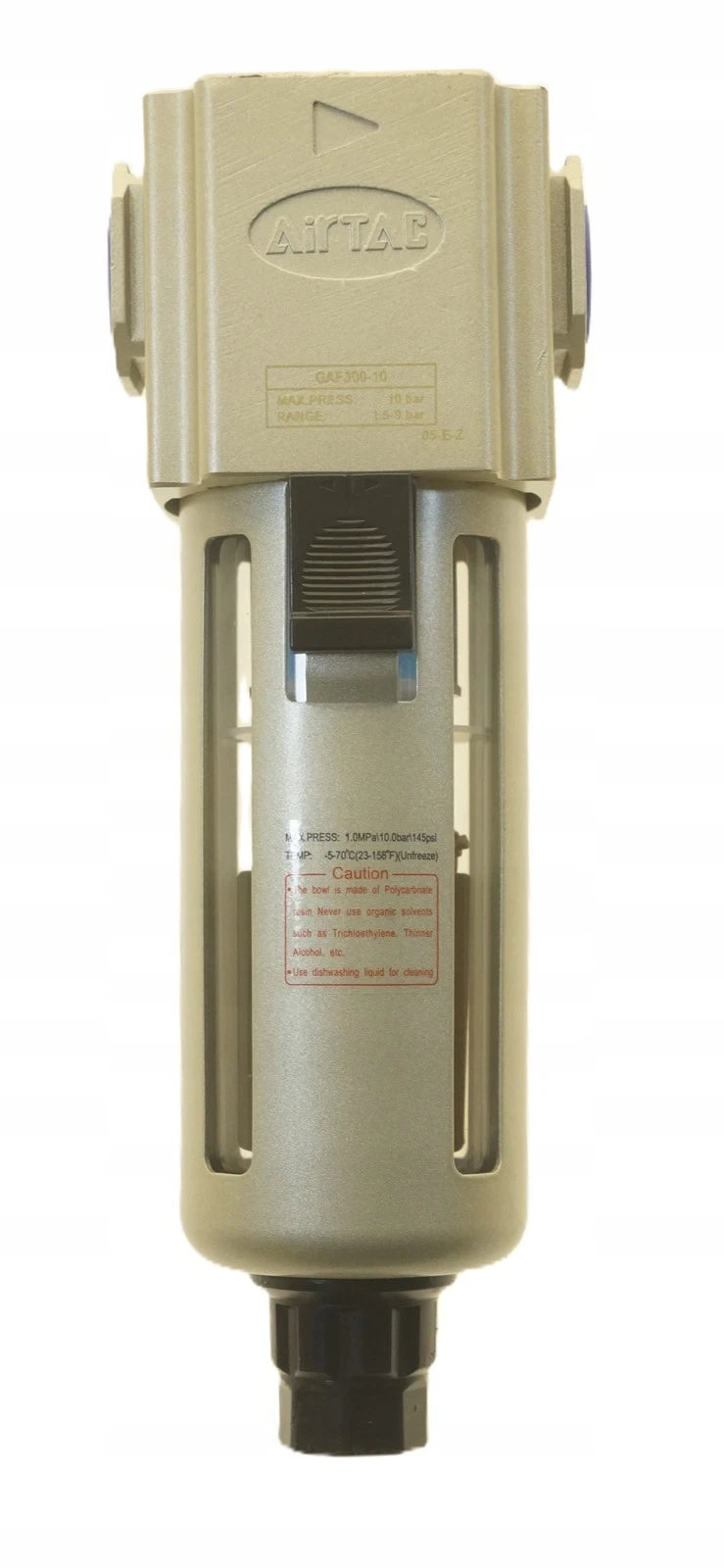

Airtac GAF300-10: Pneumatic Filter - GAF30010

Series: GA300 Series Filter Cup body material: PC cup Nozzle caliber: 3/8" Drainage mode: differential pressure + manual drainage Bracket: attached bracket Filtration accuracy: 40μm level Tooth type: PT tooth

Specifications

1. Model: GAF30010

2. Working medium: air, nozzle diameter: PT3/8, filter element accuracy: 40μm or 5μm, operating pressure range: 0.15~0.9MPa(20 ~ 130psi)

3. Guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (unfrozen), water filter cup capacity: 60CC, weight: 360g

4. Take over the tooth type has G teeth, NPT teeth to choose from

Internal structure: 1. water filter body: aluminum alloy/2.O ring: NBR/3. Diverter: POM high viscosity/4. Filter: HDPE/5. Umbrella type fixing seat: POM high viscosity/6. Water filter cup: aluminum alloy, PC, transparent nylon/7. Protective cover: SPCC/8. Level gauge inner cover: PC/9. Level gauge OOrder: NBR/10. Level gauge protective cover: SPCC

Filter cartridge :GAF300-40 With white 40μm filter element GAF300-5 With blue 5μm filter element ， Filter water cup oil cup :GAF300 Water Cup Metal Cup GAF300 Oil cup

Click to download Airtac product catalog

Product Features

1. The unique flow guide structure makes the air flow through the rotation, effectively separates the liquid from the air, and reliably filters the solid particles.

2. Small pressure loss, high water separation efficiency and large drainage capacity.

3. Filtration grade includes 5 micron and 40 micron (optional).

4. Drainage way manual drainage. Semi-automatic drainage. Three kinds of automatic drainage.

5. The drainage type has semi-automatic drainage. Two kinds of automatic drainage.

6. The bowl has three materials to choose from: PC nylon and metal.

7. Optional bracket installation.

The Airtac GAF200-600 air preparation series is a functional alternative to the SMC AF20-40 series.
