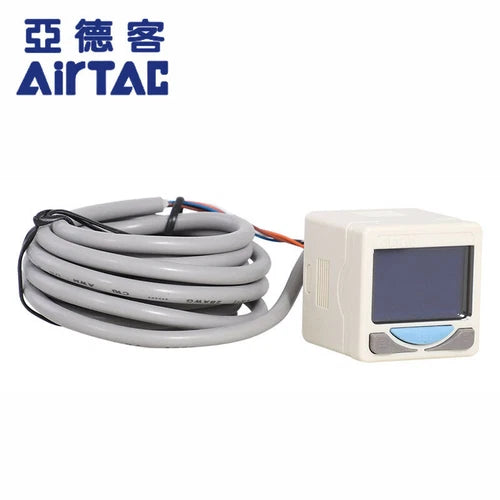

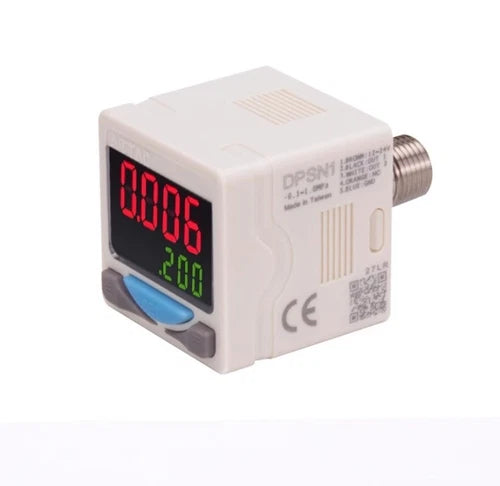

Airtac DPS-N1: Digital display pressure sensor - DPSN1B-10020

Series: Electronic digital pressure sensor Output type: NPN Power connection mode: rear outgoing line type power connection Measuring pressure range:-100kPa ~ 1,000kPa Outlet length: line length 2m Pressure stoma type: external teeth PT1/8. Internal teeth: M5

Click to download Airtac product catalog

Product Features

1. Do not drop, knock or apply excessive impact during handling. Failure to do so may result in damage or malfunction.

2. The tensile strength of the power cord is 60N. If more tension is applied, it may cause failure.

3. When installing the pipeline, the screwing torque should not exceed 7N.m, which may cause sensor failure.

4. Do not use it with corrosive and/or flammable gases or liquids.

5. Please use within the rated pressure range, please turn off the power before wiring.

6. Do not use in an environment where liquids such as oil or solvents are splashed. The power cord should be routed separately from the high-voltage line to avoid wiring in the same tube as the high-voltage line.

7. When the output current exceeds 100mA, the circuit protection function will start, and the system will return to normal after restarting.

8. Adjust the output response time to avoid errors caused by sudden changes in working pressure, and PNP has no replication function.
