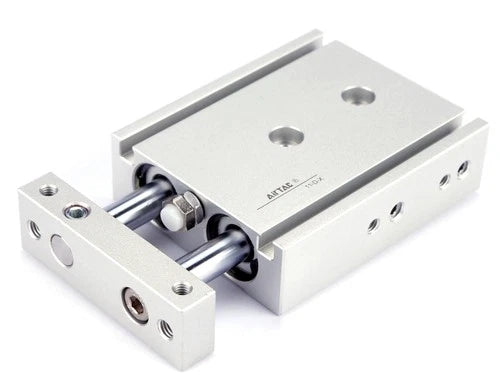

Airtac TR series: double-shaft cylinder - TR20X40S

Specification: double shaft cylinder (compound type) Bore: 20mm Stroke: 40mm Magnet: with magnet Tooth type: M5X0.8

Specifications

1. Model: TR20X40S

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Adjustment stroke mm: -5~0, Travel tolerance range: ≤100+0/1.0,＞100+0/1.5

5. Buffer type: anti-collision pad, no rotation accuracy: ±0.15°, Nozzle caliber: M5X0.8, Nozzle tooth type has PT teeth, G teeth, NPT teeth to choose from

6. The non-rotation accuracy is the angle at which the cylinder fixing plate can rotate when the cylinder is fully retracted; TR series is fully equipped with magnetism, and the sensor can be optional: DMSG,CMSG,EMSG

Internal structure and main parts material: 1. Hexagon screw: medium carbon steel/2. Cylinder fixing plate: aluminum alloy/3. Anti-collision pad: POM/4. Screw: fast cutting steel/5. Nut: Medium carbon steel/6. Piston rod: medium carbon steel (ø25,32),SUS304 (other)/7.C-shaped buckle: spring steel/8. Front cover: aluminum alloy/9. Magnet: plastic (ø32), rare earth (other)/10. Piston: SUS304(ø6,10), aluminum alloy (other)/11. Wear pad: Nylon 6/12. Rear cover: Aluminum alloy/13. Anti-collision pad: TPIU/14. Piston Oring: NBR/15. Magnet holder: SUS304(ø6,10), aluminum alloy (other)/16. Screw: medium carbon steel/17. Body: Aluminum alloy/18.O-ring: NBR/19. Axle core Oring: NBR

Type of sealing ring :P-TR20-R1 NBR Material P-TR20-R2 Fluorine rubber material

Click to download Airtac product catalog

Product Features

1. The implementation of JIS standard, high non-rotation accuracy, piston rod end deflection is small, suitable for accurate guidance.

2. The use of extended sliding support guide, no need to add lubricant, good guide performance.

3. There are mounting holes on three sides of the fixing plate, which is convenient for multi-position installation.

4. Anti-bending and torsion movement performance is good, can withstand a certain lateral load.

5. In addition to the axial, there are mounting holes on both sides of the cylinder, providing a variety of installation and fixing options.

6. There are two sets of intake and exhaust ports on both sides of the cylinder to choose from.

7. The front end of the body anti-collision pad can adjust the cylinder stroke and relieve the impact.

8. This series of standard configuration with magnets, do not provide configuration without magnets.
