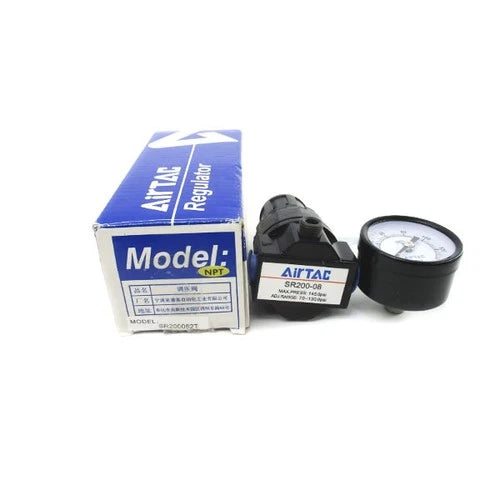

Airtac SR: Air Pressure Regulator - SR200082T

Series: 200 series Nozzle caliber: 1/4" Type: Standard Bracket: attached bracket Pressure gauge: schedule Scale unit: psi Tooth type: NPT tooth

Specifications

1. Model: SR200082T

2. Working medium: air, nozzle diameter: PT1/4, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-20~70 ℃

4. Take over the tooth type G teeth, NPT teeth optional

pressure regulating valve diaphragm :SR200 Diaphragm

Click to download Airtac product catalog

Product Features

1. The panel bracket can be selected for the installation of the regulator used independently on the pipeline.

2. compact structure, easy to install and use.

3. Pressure regulation performance is reliable and stable.

4. In addition to the standard type and low pressure type optional (maximum adjustable pressure 0.4MPa).
