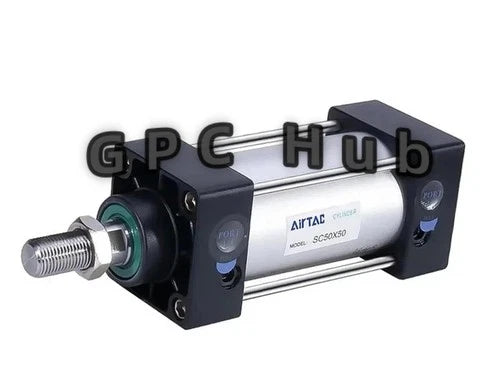

Airtac SC series: Standard double-acting cylinder - SC50X50

Specification: standard compound type Cylinder diameter: 50mm Travel: 50mm Magnet: no magnet Fixed type: none Seal material: TPU Tooth type: PT tooth

Specifications

1. Model: SC50X50

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0

5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/4

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG

Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel

Type of sealing ring :P-SC50N-R1 TPU material P-SC50-R1 NBR Material P-SC50N-R2 Fluorine rubber material ， Installation accessories :F-SC50LB Axial mounting F-SC50FA Flange connecting plate F-SC50CA Single-ear fixing seat F-SC50CB Binaural mount F-SC50TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， cylinder magnetic ring :GMED30X46.5X5 cylinder magnetic ring SC50 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SC50 Front cover SC50 Rear lid

Click to download Airtac product catalog

Product Features

1. Yadke standard cylinder;

2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability.

4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small.

5. The cylinder buffer adjustment is stable.

6. Various specifications of the cylinder and installation accessories for selection.

7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.
