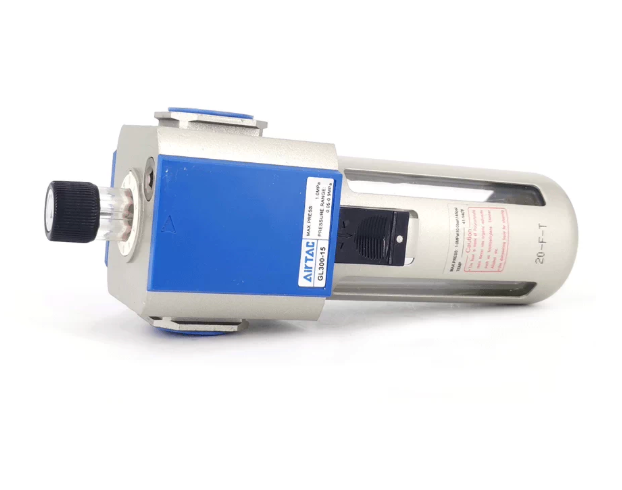

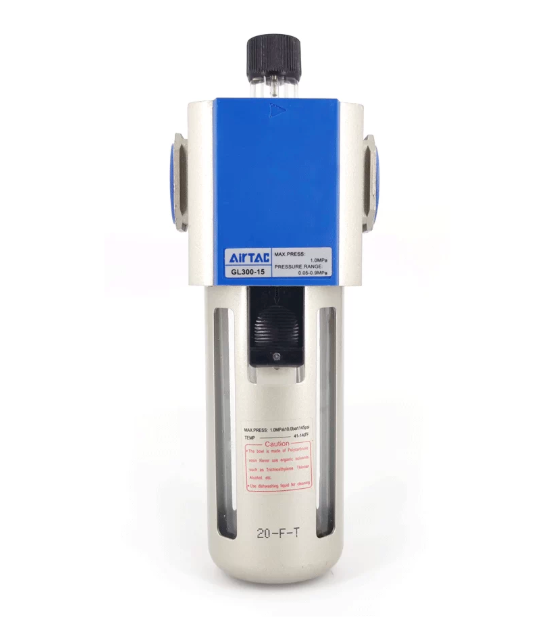

Airtac GL series: oil feeder - GL30015

Series: G300 series oil feeder Nozzle caliber: 1/2" Bracket: attached bracket Tooth type: PT tooth

Specifications

1. Model: GL30015

2. Working medium: air, nozzle diameter: PT1/2, working pressure range: 0.05~1.0MPa(7 ~ 145psi)

3. Ensure pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen), it is recommended to use lubricating oil: ISO VG32 or equivalent oil

4. Oil supply cup capacity: 75CC, weight: 360g, with G teeth and NPT teeth available for nozzle type

Internal structure: 1. oil cup: aluminum alloy (GL600),PC (other)/2. Spring: Stainless steel/3.O-ring: NBR/4. Oil feeder body: aluminum alloy/5. Steel ball: stainless steel/6. Separator: TPU/7.O-ring: NBR/8.O-ring: NBR/9. Dial: POM/10. Dropper: PC/11. Oil injection needle: brass/12. Set screw: medium carbon steel or low alloy steel/13. Adjustment ring: POM/14.O-ring: NBR/15. Adjustment inspector: PC/16. Injector body: POM/17.O-ring: NBR/18.O-ring: NBR/19. Injector bottom cover: POM/20. Level gauge protective cover: SPCC/21. Level gauge anti-leakage pad: NBR/22. Level gauge inner cover: PC

FIXED MOUNTING BRACKET :GL300 Fixed bracket ， Filter water cup oil cup :GL300 Oil cup

Click to download Airtac product catalog

Product Features

1. The oil dripping structure adopts the gap seal design, which makes the oil adjustment more stable and reliable.

2. The oil adjustment ring can only rotate 1 full circle, and the oil volume and the position of the ring are roughly linear and predictable.

3. The special dripping nozzle structure forms negative pressure at the outlet to ensure low atomization flow.

4. Oil can be injected in a non-stop gas state, and the oil cup has a large capacity.

5. Optional fixed bracket installation.
