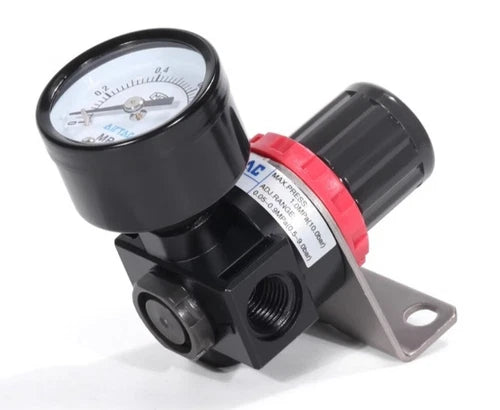

Airtac AR: Air Pressure Regulator - AR20003G

Series: A series pressure regulating valve Nozzle caliber: 1/4" Type: Standard type (0.9MPa) Bracket: attached bracket Pressure gauge: schedule Scale unit: bar Tooth type: G tooth

Specifications

1. Model: AR20003G

2. Working medium: air, nozzle diameter: PT1/4, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-20~70 ℃

4. Take over the tooth type G teeth, NPT teeth optional

Internal structure: 1. Button: POM/2. Main pressure regulator: POM/3. Main pressure regulating nut: fast cutting steel/4. Main adjusting pressure shaft: fast cutting steel/5. Pressure regulating spring: SWC/6. Retaining ring cap: POM/7. Main pressure regulator: POM/8. Body: aluminum alloy/9. Main pressure diaphragm: SUS304 encapsulated/10. Pressure regulating column O order: NBR/11. Pressure regulating column: aluminum alloy + NBR/12. Pressure regulating plug head: aluminum alloy plastic/13. BONNET ORDER: NBR/14. Return spring: Stainless steel/15. Bonnet: POM

Handle Cover Accessories :AR/BR Pressure regulating cap combination ， pressure regulating valve diaphragm :AR Diaphragm

Click to download Airtac product catalog

Product Features

1. compact structure, easy to install and use.

2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference.

3. In addition to the standard type and low pressure type optional (maximum adjustable pressure 0.4MPa).
